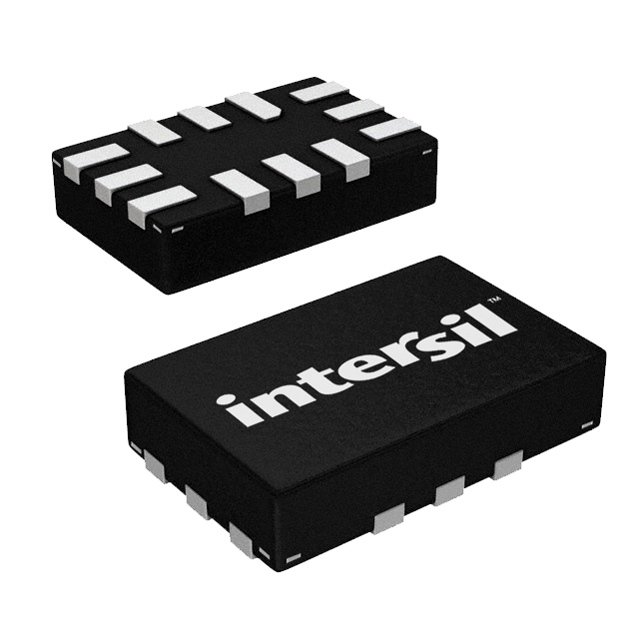

Same model may have multiple batches, images only for reference.
ISL54217IRUZ-T Intersil
Same model may have multiple batches, images only for reference.

ISL54217IRUZ-T

Part No ISL54217IRUZ-T
Manufacturer Intersil
Catalog Interface - Analog Switches - Special Purpose
Description IC USB SWITCH DUAL SP3T 12UTQFN
Datasheet
ISL54217IRUZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Obsolete(EOL)
Applications Audio, USB
Switch Circuit SP3T
Number of Channels 2
Max On Resistance 2.8 Ohm (Audio), 8 Ohm (USB)
Single Supply Voltage (V+) 2.7 V to 4.6 V
-3db Bandwidth 700MHz
Features Break-Before-Make, USB 2.0
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 12-uTQFN (2.2x1.4)
Win Source Part Number 069914-ISL54217IRUZ-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL54217IRUZ-T CAD Model

Description

The Intersil ISL54217IRUZ-T is a SP3T switch circuit designed for audio and USB applications. It features a break-before-make functionality and supports USB 2.0. The switch circuit has a -3dB bandwidth of 700 MHz and comes with two channels. It has a maximum on resistance of 2.8 Ohm for audio and 8 Ohm for USB. The operating temperature range is -40°C to 85°C and the single supply voltage ranges from 2.7 V to 4.6 V. The package comes in a 12-uTQFN (2.2x1.4) format. This product is categorized as an integrated circuit and is now obsolete (EOL).
