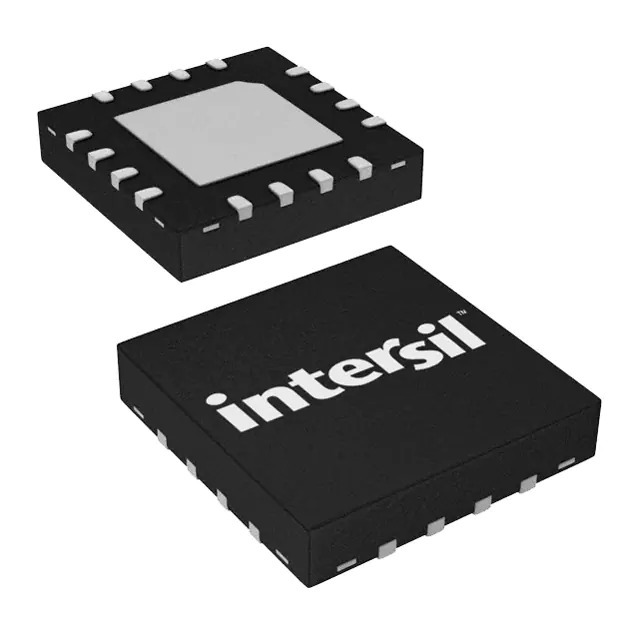

ISL43640IRZ Intersil
Same model may have multiple batches, images only for reference.

ISL43640IRZ

Part No ISL43640IRZ
Manufacturer Intersil
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SP4T X 1 50OHM 16QFN / 1 Circuit IC Switch 4:1 50Ohm 16-QFN (3x3)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Intersil
Series -
Package Tube
Product Status Obsolete
Switch Circuit SP4T
Number of Circuits 1
On-State Resistance (Max) 50Ohm
Channel-to-Channel Matching (ΔRon) 500mOhm
Voltage - Supply, Single (V+) 2.7V ~ 12V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 30ns, 28ns
-3db Bandwidth -
Charge Injection 1.2pC
Channel Capacitance (CS(off), CD(off)) 4pF, 11pF
Current - Leakage (IS(off)) (Max) 1nA
Crosstalk -
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1355274-ISL43640IRZ
Ultra Librarian 3D Model Ultra Librarian ISL43640IRZ CAD Model

Description

The ISL43640IRZ is an analog switch manufactured by Intersil.

  • Switch Configuration: Single-Pole 4-Throw (SP4T)
  • On-State Resistance: 50 Ohms
  • Voltage Supply: 2.7V to 12V
  • Turn-On Time: 30ns
  • Turn-Off Time: 28ns
  • Charge Injection: 1.2pC
  • Off-State Channel Capacitance: 4pF
  • On-State Channel Capacitance: 11pF
  • Current Leakage: 1nA
  • Channel-to-Channel Matching: 500mOhm
  • Package: 16-VFQFN exposed pad
  • Mounting Type: Surface Mountable
  • Product Status: Obsolete
  • Common Usage: Interface applications
