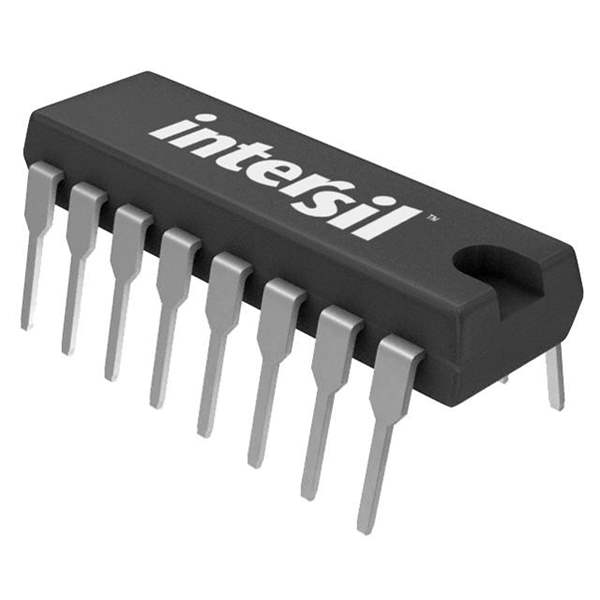

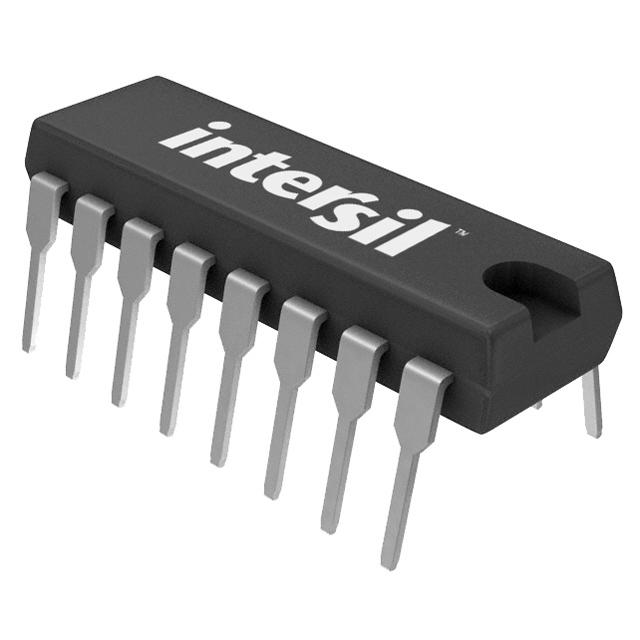

DG442DJZ Intersil
Same model may have multiple batches, images only for reference.

DG442DJZ

Part No DG442DJZ
Manufacturer Intersil
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH QUAD SPST 16DIP
Datasheet
DG442DJZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Switch Circuit SPST - NO
Number of Circuits 4
Max On Resistance 85 Ohm
Single Supply Voltage (V+) 5 V to 34 V
Dual Supply Voltage(V±) ±5 V to 22 V
Max Switch Time (Ton,Toff) 250ns, 210ns
Charge Injection -1pC
Channel Capacitance(CS off, CD off) 4pF, 4pF
Max Leakage Current (IS off) 500pA
Crosstalk -100dB @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-PDIP
Win Source Part Number 127045-DG442DJZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DG442DJZ CAD Model

Description

Description

The DG442DJZ offers versatile switching capabilities in a dual SPST configuration. This switch is tailored for scenarios where bi-directional signal flow is necessary, enhancing versatility for circuit designers.

Applications

  • Bi-directional signal routing
  • Dynamic signal multiplexing
  • Precision analog systems
  • Interactive gaming consoles
  • Portable communication devices

Features and Benefits

  • Dual SPST configuration for multi-path switching
  • Comprehensive voltage compatibility
  • Simplified system design with fewer components
  • Reliable and consistent performance
  • Low charge injection

Additional Details

The DG442DJZ combines efficient switching with operational simplicity, making it a go-to choice for designers aiming to enhance analog signal paths without complexity. Its low charge injection and robust performance are key benefits for precision systems.
