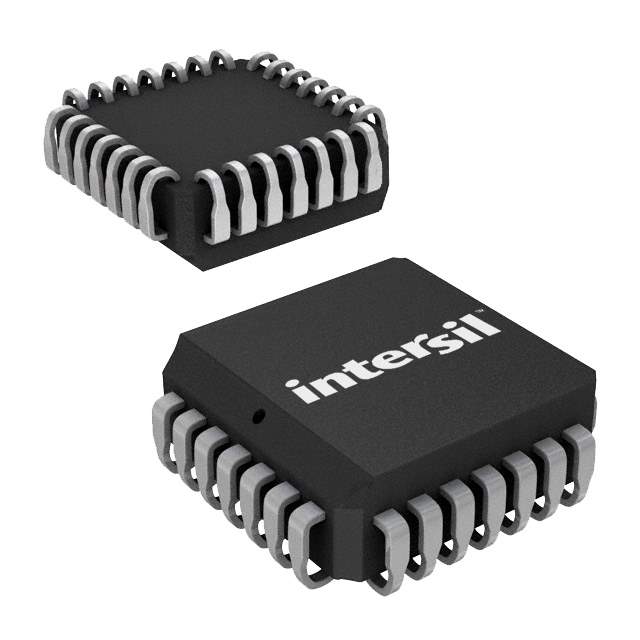

CS82C59A-12Z96 Real Image
Same model may have multiple batches, images only for reference.

CS82C59A-12Z96

Part No CS82C59A-12Z96
Manufacturer Intersil
Catalog Interface - Specialized
Description IC CTRL INTERRUPT 12.5MHZ 28PLCC / Interrupt Controller 5V 28-Pin PLCC T/R
Datasheet
CS82C59A-12Z96 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Intersil
Packaging Reel package
Interface System Bus
Operating Supply Voltage 4.5 V ~ 5.5 V
Package 28-LCC (J-Lead)
Manufacturer Package 28-PLCC (11.51x11.51)
Mounting SMD
Win Source Part Number 771842-CS82C59A-12Z96
Popularity Medium
Supply and Demand Status Limited
Quantity per package 750
Family Name 82C59A
Introduction Date August 27, 1996
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian CS82C59A-12Z96 CAD Model

Description

The Intersil 82C59A is a CMOS programmable Interrupt Controller (PIC) manufactured on an advanced 2 micron CMOS process.

  • Priority Levels: Six
  • Interrupt Sources: Up to 64
  • Compatibility: Intel 8259 and 8259A
  • Package Options: 28-pin PLCC, 28-pin CLCC
