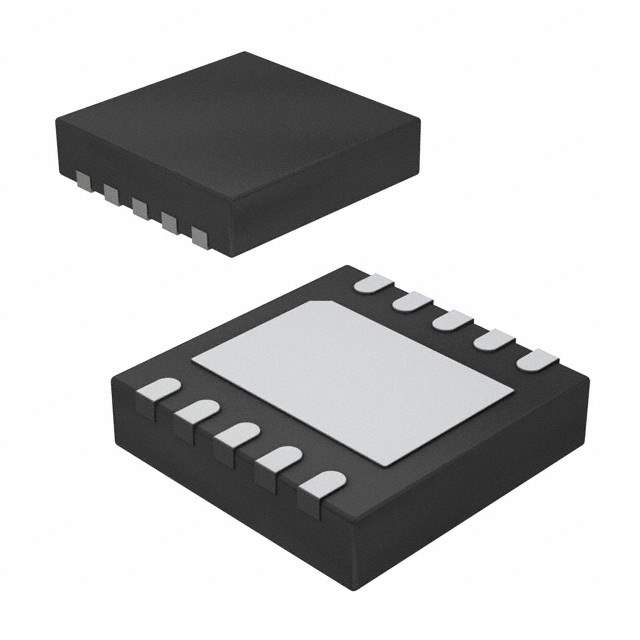

The IR3721M is a synchronous buck regulator controller IC from International Rectifier (now Infineon Technologies). It is designed for high-efficiency, step-down DC-DC conversion in a variety of applications. The controller integrates advanced features to optimize performance, reduce component count, and simplify design.

Applications

• Notebook Computers: Used as a core voltage regulator for CPUs and GPUs.
• Desktop Computers: Implemented in motherboard voltage regulation modules (VRMs).
• Server Power Supplies: Used in high-efficiency server power solutions.
• Graphics Cards: Provides power to graphics processing units (GPUs).
• Point-of-Load (POL) Converters: Used in distributed power systems for localized voltage regulation.

Features

• Synchronous Buck Controller: Controls synchronous rectification for high efficiency.
• Adaptive Dead-Time Control: Optimizes dead-time between high-side and low-side MOSFETs.
• Overcurrent Protection (OCP): Protects against excessive current draw.
• Overvoltage Protection (OVP): Prevents output voltage from exceeding safe levels.
• Undervoltage Protection (UVP): Shuts down the regulator if the input voltage is too low.
• Programmable Switching Frequency: Allows for optimization of efficiency and component size.
• Voltage Mode Control: Provides stable and accurate voltage regulation.

Benefits

• High Efficiency: Synchronous rectification minimizes power losses.
• Improved Transient Response: Adaptive dead-time control enhances transient performance.
• Robust Protection: Overcurrent, overvoltage, and undervoltage protection ensures system reliability.
• Design Flexibility: Programmable switching frequency allows for customization.
• Simplified Design: Integrated features reduce external component count.

Additional Details

The IR3721M utilizes voltage mode control, providing excellent stability and transient response. It incorporates adaptive dead-time control, which optimizes the timing between the high-side and low-side MOSFETs to minimize body diode conduction losses and improve efficiency. The IC also includes comprehensive protection features, such as overcurrent protection (OCP), overvoltage protection (OVP), and undervoltage protection (UVP), to safeguard the system against potential faults. The programmable switching frequency allows designers to tailor the regulator's performance to specific application requirements, balancing efficiency and component size. The IR3721M is commonly used in high-performance computing and power supply applications, where efficiency, reliability, and design flexibility are critical.
