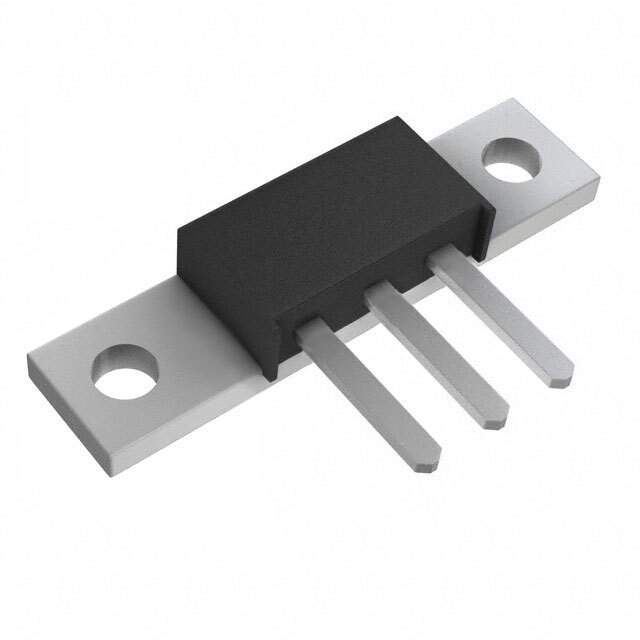

83CNQ100 Real Image
Same model may have multiple batches, images only for reference.

83CNQ100

Part No 83CNQ100
Manufacturer International Rectifier
Catalog Diodes, Rectifiers - Arrays
Description Schottky MiniMod | DIODE SCHOTTKY 100V 40A PRM2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer INTERNATIONAL RECTIFIER
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 1V at 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1.5mA at 100V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Chassis Mount
Manufacturer Package PRM2
Supplier Device Package PRM2
Manufacturer Pack Quantity 48
MSL Level 1 (Unlimited)
Win Source Part Number 1133952-83CNQ100
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 83CNQ100 CAD Model

Description

The 83CNQ100 is a fast recovery Schottky diode manufactured by International Rectifier.

  • Maximum Reverse Voltage: 100V
  • Package: PRM2
  • Pack Quantity: 48
  • RoHS Compliant: Yes
  • MSL Level: 1 (Unlimited)
