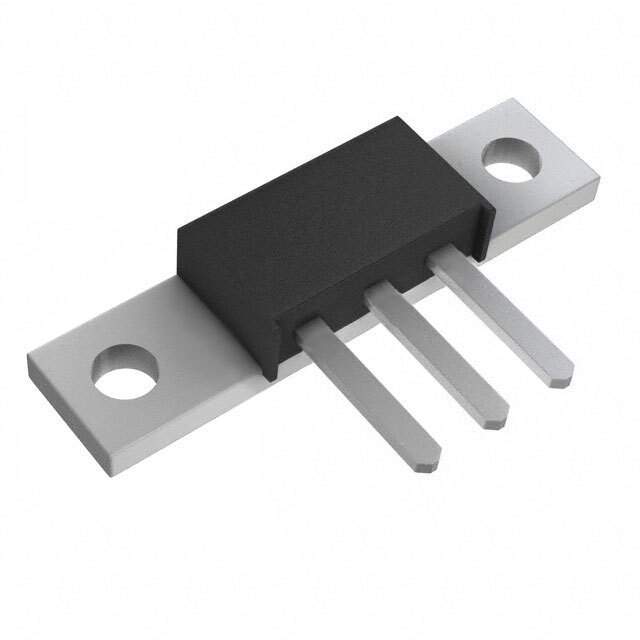

82CNQ030 Real Image
Same model may have multiple batches, images only for reference.

82CNQ030

Part No 82CNQ030
Manufacturer International Rectifier
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER 80 Amp | DIODE SCHOTTKY 30V 40A PRM2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer INTERNATIONAL RECTIFIER
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 550mV at 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 5mA at 30V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package PRM2
Supplier Device Package PRM2
Manufacturer Pack Quantity 48
MSL Level 1 (Unlimited)
Win Source Part Number 1133932-82CNQ030
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 82CNQ030 CAD Model

Description

The 82CNQ030 is a fast recovery Schottky diode pair manufactured by International Rectifier.

  • Current Average Rectified (Io): 40A
  • Voltage - DC Reverse (Vr) (Maximum): 30V
  • Win Source Part Number: 1133932-82CNQ030
  • Manufacturer Homepage: www.irf.com
