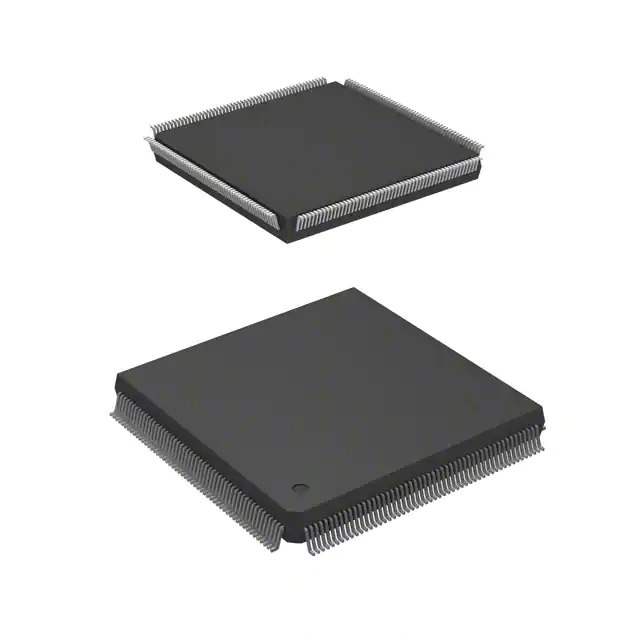

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Controllers
Mfr Intel
Series 82425EX
Package Bulk
Product Status Active
Programmable Not Verified
Function Controller
Interface Bus, PCI
Package / Case 160-QFP
Supplier Device Package 160-QFP
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 310069-S82425EX
Ultra Librarian 3D Model Ultra Librarian S82425EX CAD Model

Description

The 310069-S82425EX is an interface controller integrated circuit (IC) from the 82425EX series.

  • Category: Integrated Circuits (ICs) - Interface - Controllers
  • Package: bulk
  • Standard Package: 1 piece
  • Function: controller
  • Interface: bus and PCI interfaces
  • Programmability: not verified
  • MSL Level: 3 (168 hours)
  • REACH Status: REACH unaffected
  • HTSUS Code: 8542.39.0001
  • Manufacturer: Intel
  • Status: active
