GT28F008B3T120 Intel

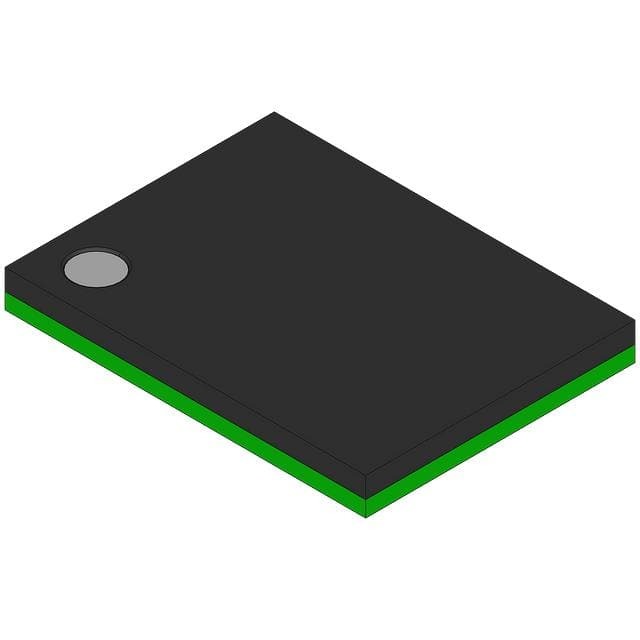

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Series 28F008B3
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - Boot Block
Memory Size 8Mbit
Memory Organization 1M x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 165ns
Access Time 120 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 48-VFBGA
Supplier Device Package 48-uBGA (7.7x9)
Standard Package 2,000 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 1058153-GT28F008B3T120
Ultra Librarian 3D Model Ultra Librarian GT28F008B3T120 CAD Model

Description

The 1058153-GT28F008B3T120 is an 8Mbit FLASH memory chip from Intel's 28F008B3 series.

  • Memory Size: 8Mbit
  • Access Time: 120ns
  • Voltage Supply: 2.7V to 3.6V
  • Mounting: Surface Mountable
  • Package: 48-VFBGA
  • Memory Interface: Parallel
  • Write Cycle Time: 165ns
  • Lifecycle: Active
  • Standard Package: 2,000 pcs
