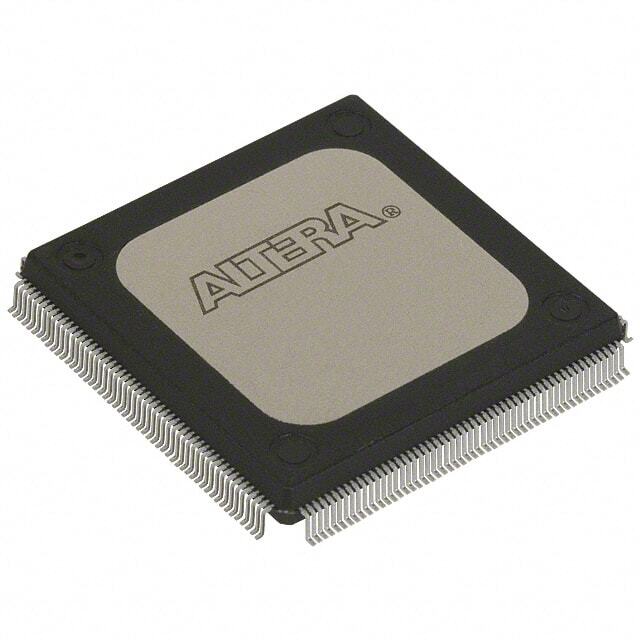

EPM9560RI208-20
Same model may have multiple batches, images only for reference.

EPM9560RI208-20

Part No EPM9560RI208-20
Manufacturer Intel
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 560MC 20NS 208RQFP
Datasheet
EPM9560RI208-20 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® 9000
Package Tray
Product Status Obsolete
Programmable Not Verified
Programmable Type In System Programmable
Delay Time tpd(1) Max 20 ns
Voltage Supply - Internal 4.5V ~ 5.5V
Number of Logic Elements/Blocks 35
Number of Macrocells 560
Number of Gates 12000
Number of I/O 153
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 208-BFQFP Exposed Pad
Supplier Device Package 208-RQFP (28x28)
Base Product Number EPM9560
Standard Package 24 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN 3A001A2A
HTSUS 8542.39.0001
Win Source Part Number 870672-EPM9560RI208-20
Ultra Librarian 3D Model Ultra Librarian EPM9560RI208-20 CAD Model

Description

The Intel 870672-EPM9560RI208-20 is a CPLD from the MAX® 9000 series.

  • I/O pins: 153
  • Gates: 12000
  • Logic elements/blocks: 35
  • Voltage Supply: 4.5V to 5.5V
  • Temperature Range: -40°C to 85°C
  • Package: 208-BFQFP Exposed Pad
  • Programmable Type: in-system programmable
