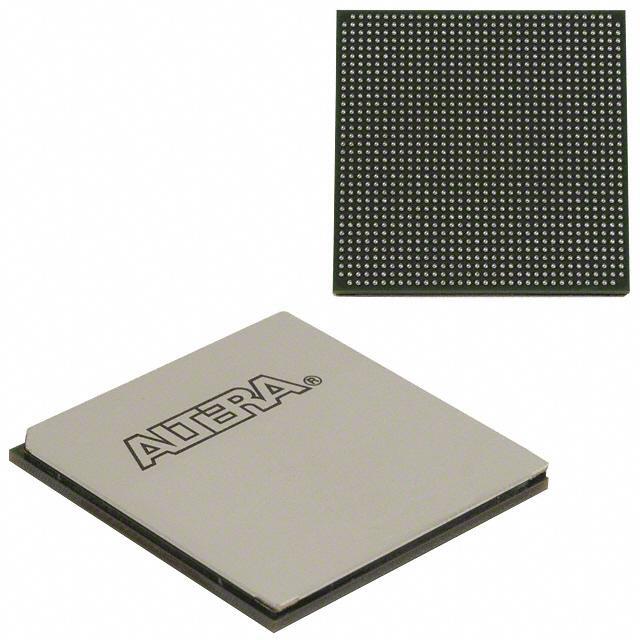

Same model may have multiple batches, images only for reference.
EP4SGX70HF35C2N Altera
Same model may have multiple batches, images only for reference.

EP4SGX70HF35C2N

Part No EP4SGX70HF35C2N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 488 I/O 1152FBGA / Stratix? IV GX Field Programmable Gate Array (FPGA) IC 488 7564880 72600 1152-BBGA, FCBGA
Datasheet
EP4SGX70HF35C2N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® IV GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 2904
Number of Logic Elements/Cells 72600
Total RAM Bits 7564880
Number of I/O 488
Voltage - Supply 0.87V ~ 0.93V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA (35x35)
Base Product Number EP4SGX70
Standard Package 24 pcs
MSL Level 3 (168 Hours)
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 814491-EP4SGX70HF35C2N
Ultra Librarian 3D Model Ultra Librarian EP4SGX70HF35C2N CAD Model

Description

The EP4SGX70HF35C2N is an embedded FPGA from Intel's Stratix IV GX series.

  • Packaging: Tray
  • Standard Package: 24 pieces
  • I/Os: 488
  • LABs/CLBs: 2904
  • Logic Elements/Cells: 72600
  • Total RAM: 7564880 bits
  • Supply Voltage Range: 0.87V to 0.93V
  • Mounting: Surface mount
  • Package: 1152-BBGA
  • Temperature Range: 0°C to 85°C
  • ECCN: 3A991D
  • Base Product Number: EP4SGX70
