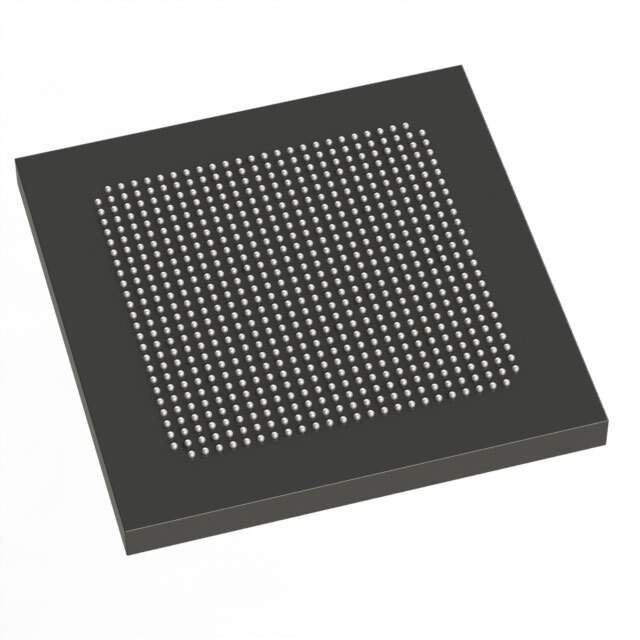

EP4SGX180DF29C2X Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® IV GX
Package Tray
Product Status Obsolete
Number of LABs/CLBs 7030
Number of Logic Elements/Cells 175750
Total RAM Bits 13954048
Number of I/O 372
Voltage - Supply 0.87V ~ 0.93V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 780-BBGA, FCBGA
Supplier Device Package 780-FBGA (29x29)
Base Product Number EP4SGX180
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Names 967357
Standard Package 36
Win Source Part Number 1209067-EP4SGX180DF29C2X
Ultra Librarian 3D Model Ultra Librarian EP4SGX180DF29C2X CAD Model

Description

The Stratix IV GX is an integrated circuit that falls under the category of Embedded-FPGAs.

  • Package: Tray
  • Standard Package: 36 units
  • Mounting: SMD (SMT) technology
  • I/Os: 372
  • LABs/CLBs: 7030
  • Logic Elements/Cells: 175750
  • Total RAM Bits: 13954048
  • Voltage Supply: 0.87V to 0.93V
  • Operating Temperature: 0°C to 85°C (TJ)
  • RoHS: Non-compliant
  • ECCN: 3A001A7A
