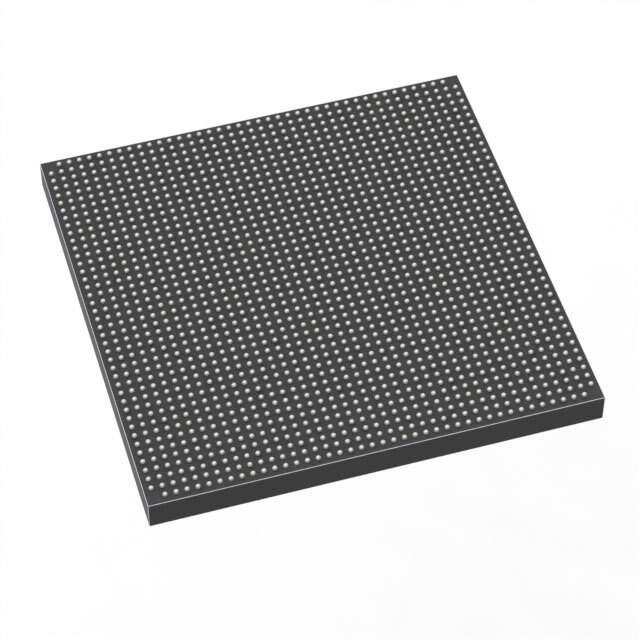

EP4SE530H35C2N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series STRATIX® IV E
Package Tray
Product Status Obsolete
Number of LABs/CLBs 21248
Number of Logic Elements/Cells 531200
Total RAM Bits 28033024
Number of I/O 744
Voltage - Supply 0.87V ~ 0.93V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-HBGA (42.5x42.5)
Base Product Number EP4SE530
MSL Level 3 (168 Hours)
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Names 967350
Standard Package 21
Win Source Part Number 1230960-EP4SE530H35C2N
Ultra Librarian 3D Model Ultra Librarian EP4SE530H35C2N CAD Model

Description

The Intel EP4SE530H35C2N is an integrated circuit (IC) that belongs to the STRATIX IV E series. It is designed for field programmable gate arrays (FPGAs) and is ideal for use in a range of applications. This Intel IC has 744 I/Os, 21248 LABs/CLBs, and 531200 logic elements/cells. It has a total RAM of 28033024 bits and a voltage supply of 0.87V ~ 0.93V. It is packaged in a 1152-BBGA, FCBGA and has a supplier device package of 1152-HBGA (42.5x42.5). This product is obsolete.
