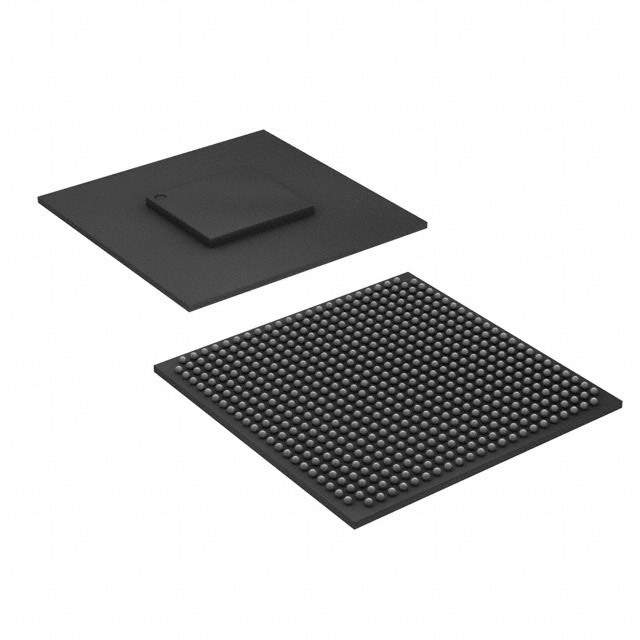

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Arria II GX
Package Tray
Product Status Obsolete
Number of LABs/CLBs 2530
Number of Logic Elements/Cells 60214
Total RAM Bits 5371904
Number of I/O 252
Voltage - Supply 0.87V ~ 0.93V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 572-BGA, FCBGA
Supplier Device Package 572-FBGA, FC (25x25)
Base Product Number EP2AGX65
MSL Level 3 (168 Hours)
ECCN 3A991D
HTSUS 8542.39.0001
Other Names 544-2709,974266
Standard Package 44
Win Source Part Number 1211530-EP2AGX65DF25C4N
Ultra Librarian 3D Model Ultra Librarian EP2AGX65DF25C4N CAD Model

Description

The Intel Arria II GX EP2AGX65DF25C4N is an embedded FPGA IC designed for high-performance applications.

  • I/O: 252
  • LABs/CLBs: 2530
  • Logic Elements/Cells: 60214
  • Total RAM Bits: 5371904
  • Package: 572-BGA, FCBGA
  • Mounting Technology: SMD (SMT)
  • Operating Temperature: 0°C to 85°C (TJ)
  • MSL Level: 3 (168 hours)
  • Status: Obsolete
  • Supply and Demand: Balanced
