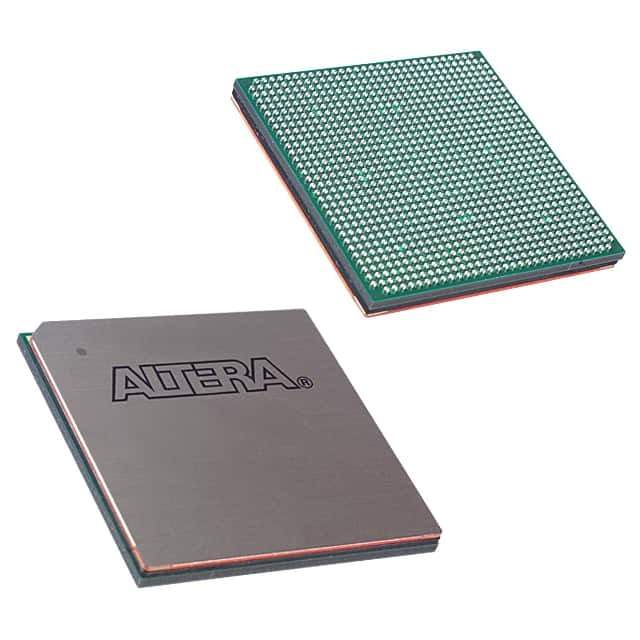

EP1SGX40DF1020C5N Real Image
Same model may have multiple batches, images only for reference.

EP1SGX40DF1020C5N

Part No EP1SGX40DF1020C5N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 624 I/O 1020FBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 4125
Number of Logic Elements/Cells 41250
Total RAM Bits 3423744
Number of I/O 624
Voltage - Supply 1.425V ~ 1.575V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1020-BBGA
Supplier Device Package 1020-FBGA (33x33)
Base Product Number EP1SGX40
Standard Package 24 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN 3A001A7A
HTSUS 8542.39.0001
Win Source Part Number 589431-EP1SGX40DF1020C5N
Ultra Librarian 3D Model Ultra Librarian EP1SGX40DF1020C5N CAD Model

Description

The EP1SGX40DF1020C5N is an embedded FPGA (Field Programmable Gate Array) from the Stratix® GX series.

  • Series: Stratix® GX
  • Application: Electronic applications that require high-performance programmable logic capabilities
  • I/O Pins: 624
  • LABs/CLBs: 4125
  • Logic Elements/Cells: 41250
  • RAM Capacity: 3423744 bits
  • Voltage Supply: 1.425V to 1.575V
  • Mounting: Surface mountable
  • Package: 1020-BBGA
  • Manufacturer: Intel
  • Status: Obsolete
