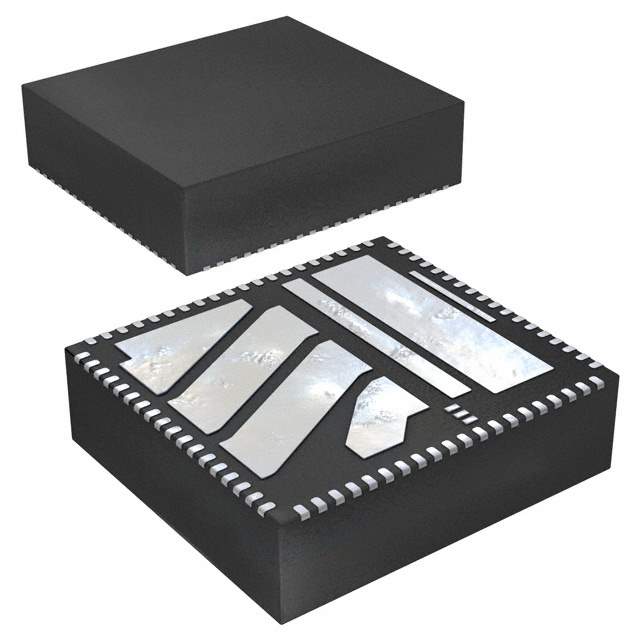

Same model may have multiple batches, images only for reference.

EN2392QI

Name: EN2392QI
Brand: Intel
SKU: 1237406
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EN2392QI
Manufacturer	Intel
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.75-3.3V / Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.3V 9A 4.5V - 13.2V Input
Datasheet	EN2392QI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Intel
Series	Enpirion® 2300
Package	Tape & Reel
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.2V
Voltage - Output 1	0.75 ~ 3.3V
Current - Output (Max)	9A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	76-PowerBFQFN Module
Dimension	0.43" L x 0.39" W x 0.12" H (11.0mm x 10.0mm x 3.0mm)
Supplier Device Package	76-QFN (11x10)
Control Features	Enable, Active High
Base Product Number	EN2392
Other Names	EN2392QI,544-3045-6,544-3045-1,544-3045-2,972584
Standard Package	250
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1237406-EN2392QI
Ultra Librarian 3D Model	Ultra Librarian EN2392QI CAD Model

Alternative Products

Description

The EN2392QI is a non-isolated PoL module designed for board mount applications.

Features: Remote On/Off, OCP, OTP, SCP, and UVLO
Series: Enpirion® 2300
Application: ITE (Commercial)
Packaging: Tape and Reel
Standard Package: 250
Control Feature: Enable, Active High
Number of Outputs: 1
Current Output: 9A
Voltage Input Range: 4.5V to 13.2V
Voltage Output: 0.75V to 3.3V
Package: 76-QFN (11x10)
Dimension: 0.43" L x 0.39" W x 0.12" H (11.0mm x 10.0mm x 3.0mm)
Operating Temperature Range: -40°C to 85°C
Alternate Names: 544-3045-6, 544-3045-1, 544-3045-2, 972584
Manufacturer: Intel
