5SGXEA4H2F35I2LN

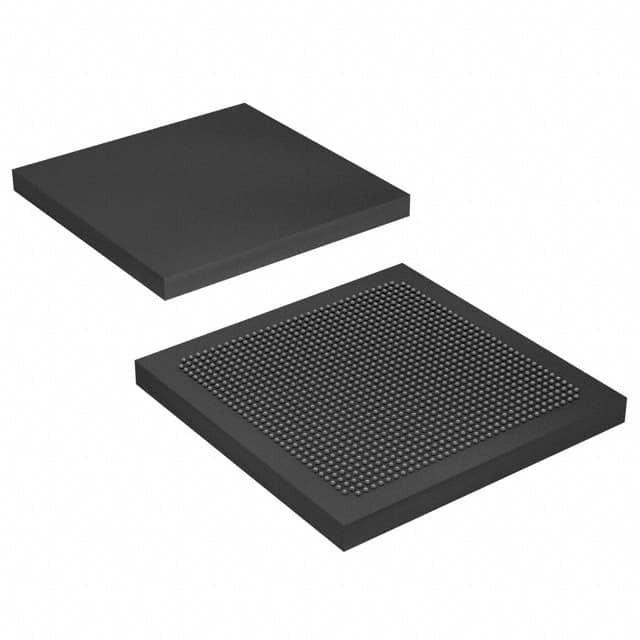

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 158500
Number of Logic Elements/Cells 420000
Total RAM Bits 37888000
Number of I/O 552
Voltage - Supply 0.82V ~ 0.88V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA (35x35)
Base Product Number 5SGXEA4
Standard Package 24 pcs
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Win Source Part Number 856789-5SGXEA4H2F35I2LN
Ultra Librarian 3D Model Ultra Librarian 5SGXEA4H2F35I2LN CAD Model

Description

The Stratix V GX series FPGA, with the part number 856789-5SGXEA4H2F35I2LN, is a high-performance embedded integrated circuit designed for field programmable gate array applications manufactured by Intel.

  • LABs/CLBs: 158500
  • Logic elements/cells: 420000
  • I/O pins: 552
  • RAM bits: 37888000
  • Voltage: 0.82V to 0.88V
  • Mounting Type: Surface Mountable
  • Package: 24 pieces in tray packaging
  • Package/case size: 1152-BBGA
  • Supplier device package: 1152-FBGA (35x35)
  • Operating temperature range: -40°C to 100°C
  • Status: Obsolete
