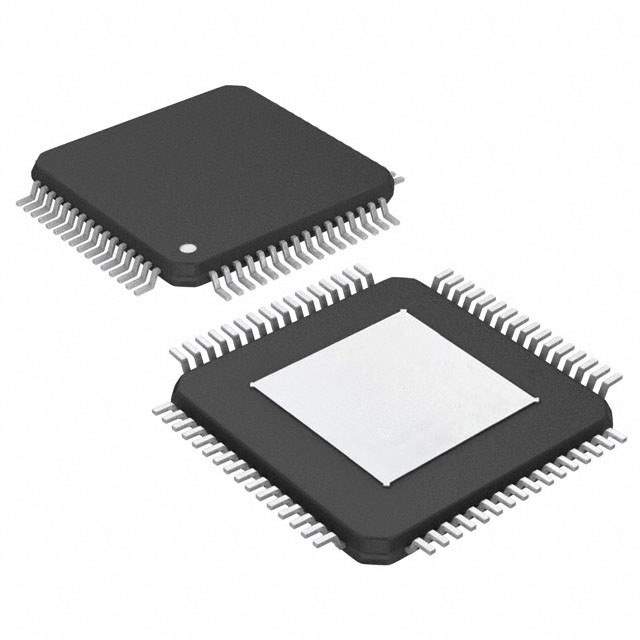

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® V
Package Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 80
Number of Macrocells 64
Number of I/O 54
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 64-TQFP Exposed Pad
Supplier Device Package 64-EQFP (7x7)
Base Product Number 5M80Z
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Names 5M80ZE64A5N-ND,970652,544-3577
Standard Package 250
Win Source Part Number 1162505-5M80ZE64A5N
Ultra Librarian 3D Model Ultra Librarian 5M80ZE64A5N CAD Model

Description

The Intel 5M80ZE64A5N is an integrated circuit with a series of MAX V and a programmable type of in-system programmable.

  • Series: MAX V
  • Programmable Type: In-System Programmable
  • I/O: 54
  • Delay Time tpd(1) max: 7.5 ns
  • Voltage Supply Internal: 1.71V ~ 1.89V
  • Package/Case: 64-TQFP exposed pad
  • Supplier Device Package: 64-EQFP (7x7)
