Same model may have multiple batches, images only for reference.

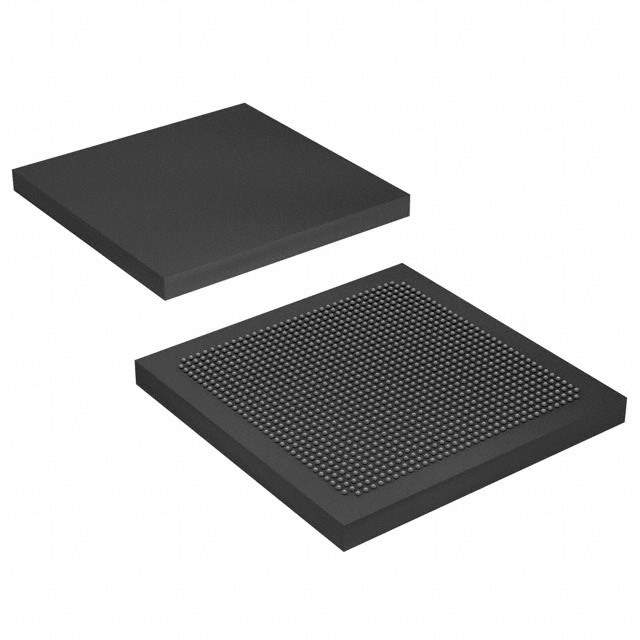

10AX066H3F34I2SGES Real Image
Same model may have multiple batches, images only for reference.

10AX066H3F34I2SGES

Part No 10AX066H3F34I2SGES
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 492 I/O 1152FCBGA / Arria 10 GX Field Programmable Gate Array (FPGA) IC 492 49610752 660000 1152-BBGA, FCBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>FPGAs (Field Programmable Gate Array)
Manufacturer Intel
Packaging Tray
Number of LABs/CLBs 250540
Number of Logic Elements/Cells 660000
Total RAM Bits 49610752
Number of I/O 492
Voltage - Supply 0.87V ~ 0.93V
Mounting Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Case / Package 1152-BBGA, FCBGA
Supplier Device Package 1152-FCBGA (35x35)
RoHS Status RoHS Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Part Number 985546
Standard Package 1
Win Source Part Number 1318253-10AX066H3F34I2SGES
Ultra Librarian 3D Model Ultra Librarian 10AX066H3F34I2SGES CAD Model

Description

The 1318253-10AX066H3F34I2SGES is an embedded FPGA IC that belongs to the Field Programmable Gate Array series by Intel.

  • Total RAM: 49610752 bits
  • I/O: 492
  • Voltage Supply: 0.87V to 0.93V
  • Package: 1152-FCBGA (35x35)
  • Mounting: Surface Mountable
  • Operating Temperature: -40°C to 100°C (TJ)
  • ECCN: 3A001A7A
  • RoHS Compliant: RoHS compliant
