Same model may have multiple batches, images only for reference.

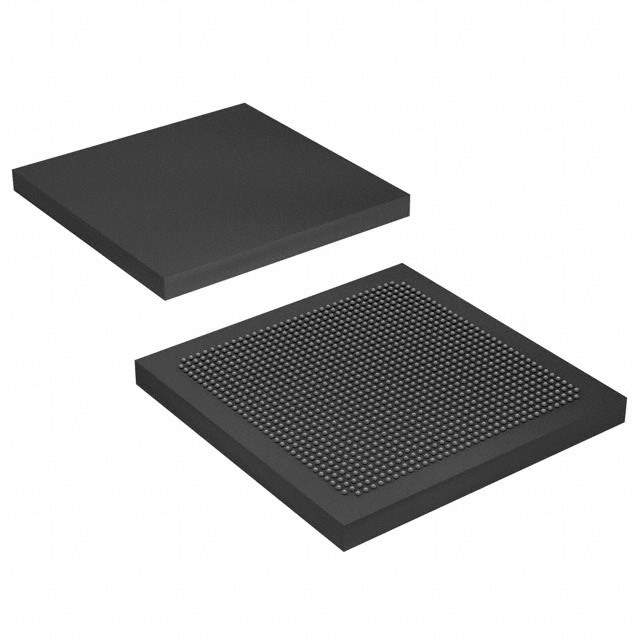

10AS066H3F34I2SG Real Image
Same model may have multiple batches, images only for reference.

10AS066H3F34I2SG

Part No 10AS066H3F34I2SG
Manufacturer Intel
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 1.5GHZ 1152FBGA / Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Arria 10 SX FPGA - 660K Logic Elements 1.5GHz 1152-FBGA, FC (35x35)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>System On Chip (SoC)
Manufacturer Intel
Packaging Tray
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA, POR, WDT
Connectivity EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 1.5GHz
Primary Attributes FPGA - 660K Logic Elements
Temperature Range - Operating -40°C ~ 100°C (TJ)
Case / Package 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA, FC (35x35)
Number of I/O 492
RoHS Status RoHS Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Part Number 10AS066H3F34I2SG-ND,965379,544-3514
Standard Package 1
Win Source Part Number 1323091-10AS066H3F34I2SG
Ultra Librarian 3D Model Ultra Librarian 10AS066H3F34I2SG CAD Model

Description

The Intel 10AS066H3F34I2SG embedded system on chip (SoC) is a dual ARM® Cortex®-A9 MPCore™ with CoreSight™ core processor that has a speed of 1.5GHz.

  • Supplier Device Package: 1152-FBGA, FC (35x35)
  • Package: Tray
  • Standard Package: 1
  • I/Os: 492
  • Connectivity: EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
  • Peripherals: DMA, POR, WDT
  • RAM Size: 256KB
  • Architecture: MCU, FPGA
  • Primary Attributes: FPGA - 660K logic elements
  • MSL Level: 3 (168 hours)
  • HTSUS: 8542.39.0001

The 10AS066H3F34I2SG SoC is RoHS compliant and is ideal for use in embedded applications.
