The IS42S81600D-7TLI is a high-speed, low-power Dynamic Random Access Memory (DRAM) from Integrated Silicon Solution, Inc. (ISSI). It is a synchronous DRAM (SDRAM) organized as 8,388,608 words x 16 bits x 2 banks. This SDRAM is designed for memory-intensive applications requiring a large amount of volatile storage with fast access times.

Applications:

• Networking equipment: Routers, switches, and other network devices that require high-speed memory for packet buffering and processing.
• Graphics cards: Used as frame buffer memory in some graphics cards, especially in embedded or lower-end systems.
• Embedded systems: Various embedded applications that require fast and large memory capacity, such as industrial control systems, medical devices, and automotive systems.
• Printers and scanners: Used for image processing and buffering in printers and scanners.

Features:

• High-speed clock rate: Operates at a clock frequency up to 143 MHz, providing fast data access.
• Double data rate (DDR): Transfers data on both rising and falling edges of the clock signal, effectively doubling the data transfer rate.
• Low power consumption: Designed for low power operation, making it suitable for battery-powered devices and energy-efficient systems.
• Byte mask capability: Allows selective writing to individual bytes within a word.
• Self-refresh mode: Reduces power consumption when the device is not actively being accessed.
• Programmable burst length: Supports burst lengths of 1, 2, 4, 8, or full page.
• LVTTL compatible inputs: Compatible with standard LVTTL logic levels.

Benefits:

• Increased system performance: High-speed data access improves overall system performance.
• Reduced power consumption: Low power operation extends battery life in portable devices and reduces energy costs in other applications.
• Simplified system design: Compatible with standard logic levels, simplifying integration into existing systems.
• Flexible memory configuration: Programmable burst length and byte mask capability allows the user to customize the memory configuration to suit their application.
• Reliable operation: Designed for reliable operation in a wide range of environments.

Additional Details:

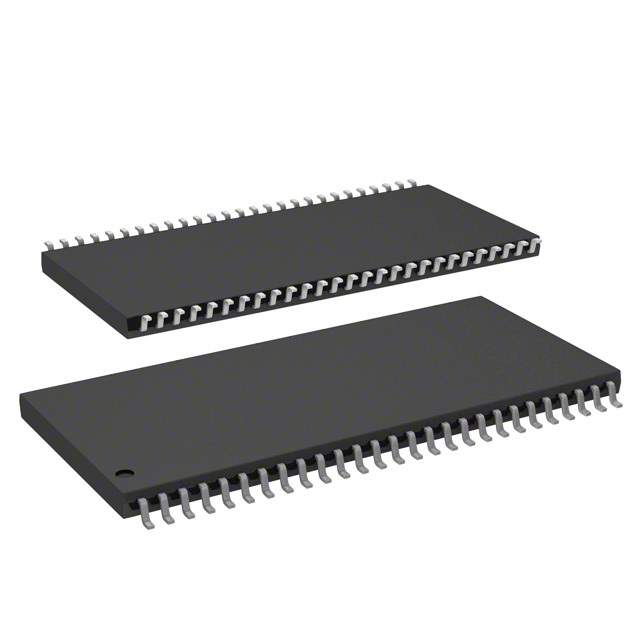

The IS42S81600D-7TLI operates from a 3.3V power supply. It is available in a TSOP (Thin Small Outline Package). The operating temperature range is typically commercial or industrial, depending on the specific variant. The device supports various JEDEC standards for SDRAM operation. This component is lead-free and RoHS compliant. Its organization of 8M x 16 x 2 banks provides substantial memory capacity for demanding applications.
