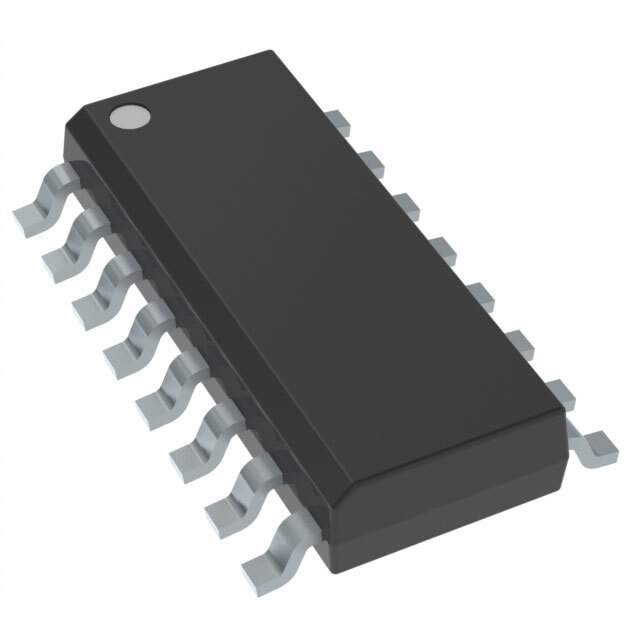

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Type Transceiver
Protocol LIN
Number of Drivers/Receivers 1/1
Duplex Full
Receiver Hysteresis 600mV
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 150°C
Mounting SMD (SMT)
Case / Package P-DSO-16
Win Source Part Number 052194-TLE6286G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLE6286G CAD Model

Description

The Infineon Technologies TLE6286G is a LIN transceiver that comes in a P-DSO-16 package.

  • Package: P-DSO-16
  • Duplex: Full Duplex
  • Receiver Hysteresis: 600mV
  • Temperature Range: -40°C to 150°C
  • Supply Voltage: 4.5 V to 5.5 V
