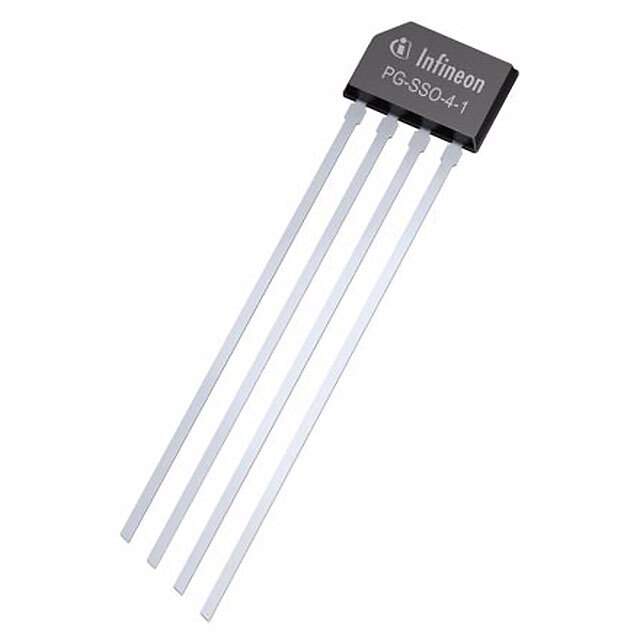

TLE4922XINFHALA1 Real Image
Same model may have multiple batches, images only for reference.

TLE4922XINFHALA1

Part No TLE4922XINFHALA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR HALL ANALOG SSO4-1 / Hall Effect Sensor Single Axis PG-SSO-4-1
Datasheet
TLE4922XINFHALA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Linear, Compass (ICs)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Cut Tape (CT),Tape & Box (TB)
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Sensing Range ±400mT
Voltage - Supply 4.5V ~ 18V
Current - Supply (Max) 7mA
Current - Output (Max) 8mA
Bandwidth 8kHz
Temperature Range - Operating -40°C ~ 155°C
Supplier Device Package PG-SSO-4-1
Mounting Type Through Hole
Package / Case 4-SIP, SSO-4-1
Base Product Number TLE4922
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names INFINFTLE4922XINFHALA1,TLE4922XINFHALA1CT,2156-TLE4922XINFHALA1,SP001154230,TLE4922XINFHALA1TB
Standard Package 2,000
Win Source Part Number 1099702-TLE4922XINFHALA1
Ultra Librarian 3D Model Ultra Librarian TLE4922XINFHALA1 CAD Model

Description

The Infineon Technologies TLE4922XINFHALA1 is a magnetic sensor designed for automotive applications.

  • Technology: Hall Effect
  • Sensing Range: ±400mT
  • Axis: Single
  • Output Type: Analog Voltage
  • Bandwidth: 8kHz
  • Current - Supply (Max): 7mA
  • Current - Output (Max): 8mA
  • Voltage - Supply: 4.5V ~ 18V
  • Operating Temperature: -40°C ~ 155°C
  • Package / Case: 4-SIP, SSO-4-1
