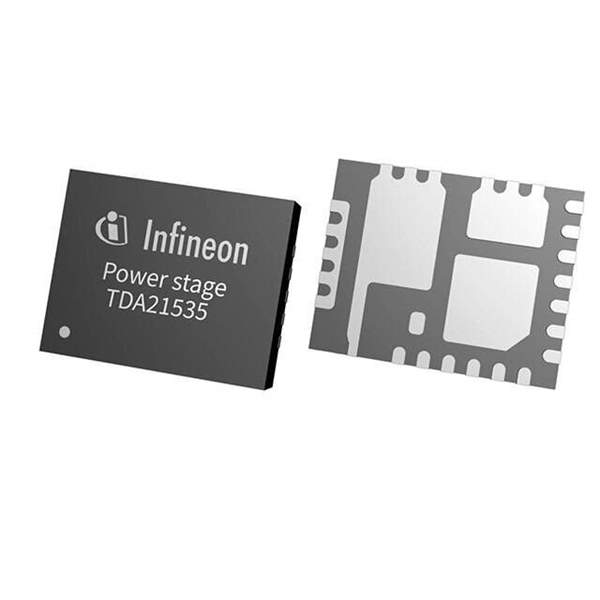

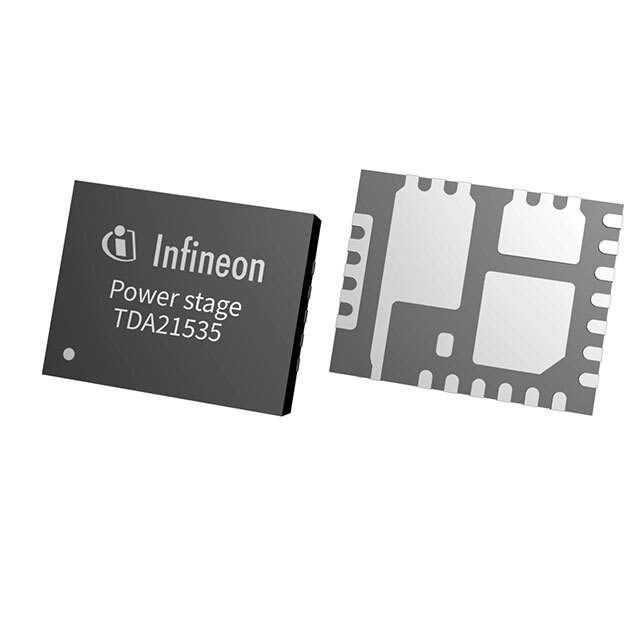

TDA21535AUMA1

Name: TDA21535AUMA1
Brand: Infineon Technologies
SKU: 1229437
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TDA21535AUMA1
Manufacturer	Infineon Technologies
Catalog	PMIC - Gate Drivers
Description	IFX POWERSTAGE/DRIVER / Half-Bridge Gate Driver IC Non-Inverting PG-IQFN-25-1
Datasheet	TDA21535AUMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr	Infineon Technologies
Package	Tape & Reel
Product Status	Active
Programmable	Not Verified
Driven Configuration	Half-Bridge
Channel Type	Single
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	4.25V ~ 16V
Logic Voltage - VIL, VIH	2V, 0.8V
Current - Peak Output (Source, Sink)	20A, 20A
Input Type	Non-Inverting
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	25-PowerTFQFN
Supplier Device Package	PG-IQFN-25-1
Base Product Number	TDA21535
Standard Package	5,000 pcs
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1229437-TDA21535AUMA1
Ultra Librarian 3D Model	Ultra Librarian TDA21535AUMA1 CAD Model

Description

The TDA21535AUMA1 is a gate driver IC designed for power management applications in integrated circuits.

Channel Configuration: single-channel, non-inverting
Driven Configuration: half-bridge
MOSFET Gate Drivers: two N-Channel
Peak Output Current (Source): 20A
Peak Output Current (Sink): 20A
Logic Voltage Low (VIL): 2V
Logic Voltage High (VIH): 0.8V
Voltage Supply: 4.25V to 16V
Temperature Range: -40°C to 125°C
Package Type: 25-PowerTFQFN
Mounting: surface mountable
