Same model may have multiple batches, images only for reference.

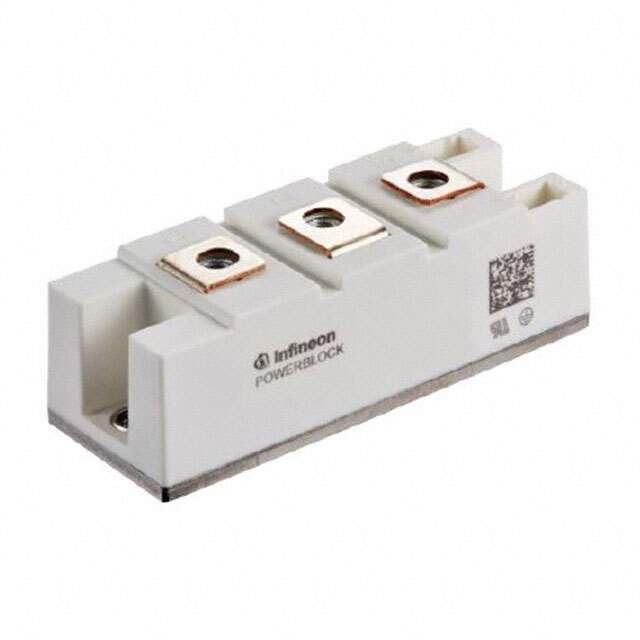

TD160N18SOFHPSA1 Real Image
Same model may have multiple batches, images only for reference.

TD160N18SOFHPSA1

Part No TD160N18SOFHPSA1
Manufacturer Infineon Technologies
Catalog TVS - Thyristors
Description SCR MODULE 1800V 275A MODULE / SCR Module 1.8 kV 275 A Series Connection - SCR/Diode Chassis Mount Module
Datasheet
TD160N18SOFHPSA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr Infineon Technologies
Package Tray
Product Status Obsolete
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1.8 kV
Current - On State (It (AV) ) (Max) 160 A
Current - On State (It (RMS) ) (Max) 275 A
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 145 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 5200A @ 50Hz
Current - Hold (Ih) (Max) 200 mA
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis Mount
Package / Case Module
Base Product Number TD160N
Standard Package 8
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1337332-TD160N18SOFHPSA1
Ultra Librarian 3D Model Ultra Librarian TD160N18SOFHPSA1 CAD Model

Description

The Infineon Technologies TD160N18SOFHPSA1 is a series connection SCR/Diode module in a chassis mount package.

  • SCR, Diode Configuration: 1 SCR, 1 Diode Series Connection
  • Voltage - Off State: 1.8 kV
  • Current - On State (It (AV)) (Max): 160A
  • Current - On State (It (RMS)) (Max): 275A
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 5200A @ 50Hz
  • Voltage - Gate Trigger (Vgt) (Max): 2.5V
  • Current - Gate Trigger (Igt) (Max): 145mA
  • Current - Hold (Ih) (Max): 200mA
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Chassis Mount
  • Package / Case: Module
