Same model may have multiple batches, images only for reference.

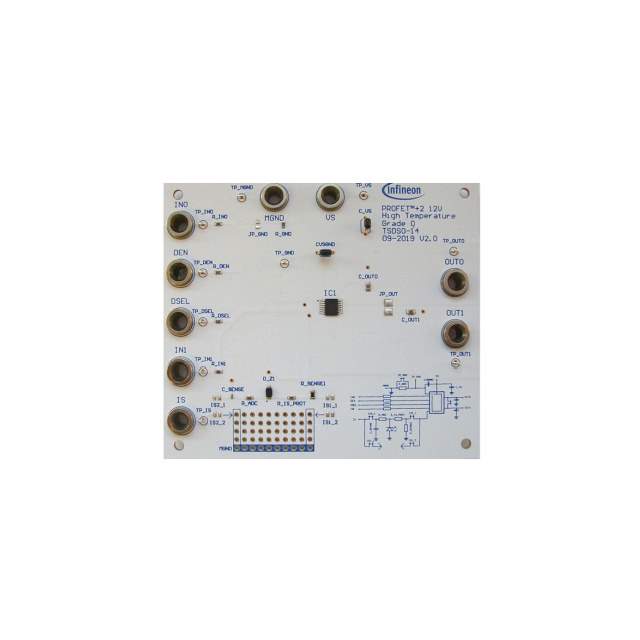

SHIELDBTS70802EPZTOBO1 Real Image
Same model may have multiple batches, images only for reference.

SHIELDBTS70802EPZTOBO1

Part No SHIELDBTS70802EPZTOBO1
Manufacturer Infineon Technologies
Catalog Evaluation Boards - Expansion Boards
Description PROFET+2 12V GRADE0 BTS7080-2EP / BTS7080-2EPZ Switch Power Management Platform Evaluation Expansion Board
Datasheet
SHIELDBTS70802EPZTOBO1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Mfr Infineon Technologies
Series PROFET™+2
Package Bulk
Type Power Management
Function Switch
Utilized IC / Part BTS7080-2EPZ
Contents Board(s)
Base Product Number SHIELDBTS70802
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names SP005344722,448-SHIELDBTS70802EPZTOBO1
Standard Package 1
Win Source Part Number 969760-SHIELDBTS70802EPZTOBO1
Ultra Librarian 3D Model Ultra Librarian SHIELDBTS70802EPZTOBO1 CAD Model

Description

The Infineon Technologies SHIELDBTS70802EPZTOBO1 is a power management evaluation board designed for use with the BTS7080-2EPZ switch. This board is manufactured by Infineon Technologies.

  • Series: PROFET™+2
  • Function: Switch
  • Package: Bulk
  • Quantity: 1 Board
  • Application: Motor control, lighting, and power management
