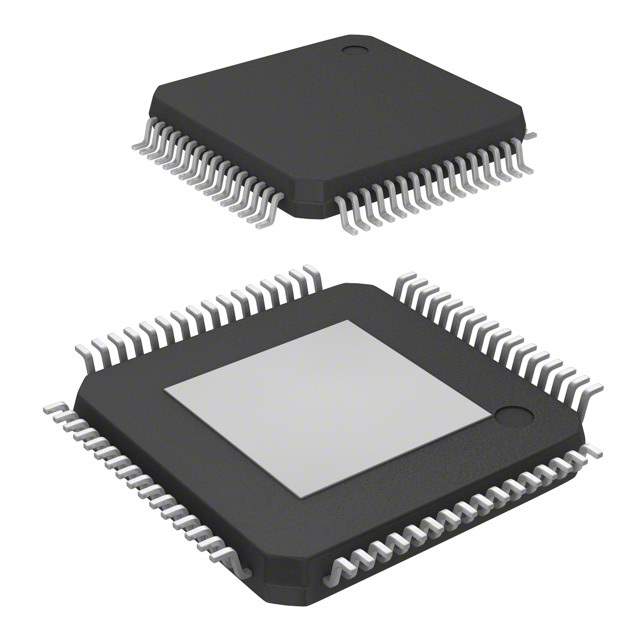

SAK-XC2236N-24F40L AA Real Image
Same model may have multiple batches, images only for reference.

SAK-XC2236N-24F40L AA

Part No SAK-XC2236N-24F40L AA
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers
Datasheet
SAK-XC2236N-24F40L AA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Infineon Technologies
Series XC22xxN
Package Tape & Reel (TR)
Product Status Obsolete
Core Processor C166SV2
Core Size 16/32-Bit
Speed 40MHz
Connectivity CANbus, EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI
Peripherals I2S, POR, PWM, WDT
Number of I/O 38
Program Memory Size 192KB (192K x 8)
Program Memory Type FLASH
RAM Size 26K x 8
Supply Voltage - Operating 3V ~ 5.5V
Data Converters A/D 9x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 64-LQFP Exposed Pad
Supplier Device Package PG-LQFP-64-6
Base Product Number SAK-XC2236
Other Names SAK-XC2236N-24F40LAA,SAK-XC2236N-24F40L AA
Standard Package 1,700
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1264634-SAK-XC2236N-24F40L AA
Ultra Librarian 3D Model Ultra Librarian SAK-XC2236N-24F40L AA CAD Model

Description

The Infineon Technologies XC2236N-24F40L AA microcontroller is a high-performance, 16/32-bit integrated circuit (IC) with a core processor of C166SV2.

  • Core Processor: C166SV2
  • Speed: 40MHz
  • Program Memory Size: 192KB (192K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 26K x 8
  • Number of I/O: 38
  • Connectivity: CANbus, EBI/EMI, I2C, LINbus, SPI, SSC, UART/USART, USI
  • Peripherals: I2S, POR, PWM, WDT
  • Oscillator Type: Internal
  • Package/Case: 64-LQFP Exposed Pad
  • Temperature Range: -40°C ~ 125°C (TA)
  • Supply Voltage: 3V ~ 5.5V
