Same model may have multiple batches, images only for reference.

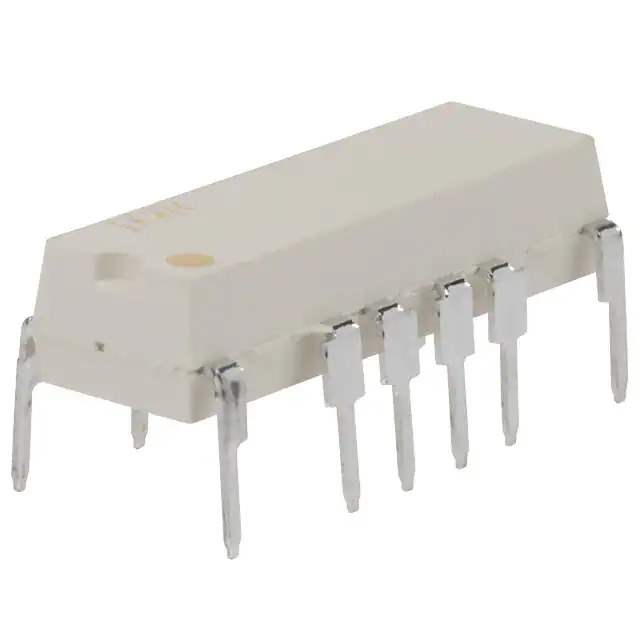

PVR3301NPBF Real Image
Same model may have multiple batches, images only for reference.

PVR3301NPBF

Part No PVR3301NPBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY DPST-NO 165MA 0-300V / Solid State DPST-NO (2 Form A) x 2 16-DIP (0.300", 7.62mm), 10 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVR, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit DPST-NO (2 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 300 V
Load Current 165 mA
On-State Resistance (Max) 24 Ohms
Termination Style PC Pin
Package / Case 16-DIP (0.300", 7.62mm), 10 Leads
Supplier Device Package 16-DIP
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658211-PVR3301NPBF
Ultra Librarian 3D Model Ultra Librarian PVR3301NPBF CAD Model

Description

The Infineon Technologies PVR3301NPBF is a solid-state relay from the PVR and HEXFET series.

  • Series: PVR and HEXFET
  • Circuit Configuration: DPST-NO (2 Form A) x 2
  • Voltage Input: 1.2VDC
  • Output Types: AC and DC
  • On-State Resistance: 24 Ohms
  • Load Current: 165mA
  • Voltage Load Range: 0V to 300V
  • Package: Through-Hole with 10 leads
  • Operating Temperature Range: -40°C to 150°C
  • Product Status: Obsolete
