Same model may have multiple batches, images only for reference.

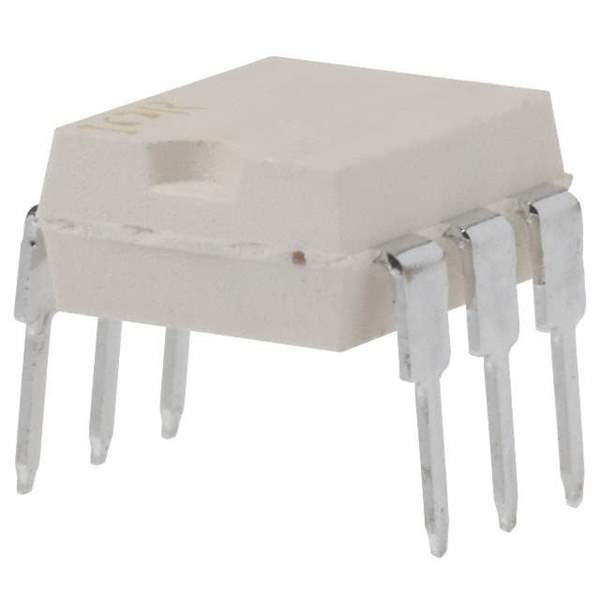

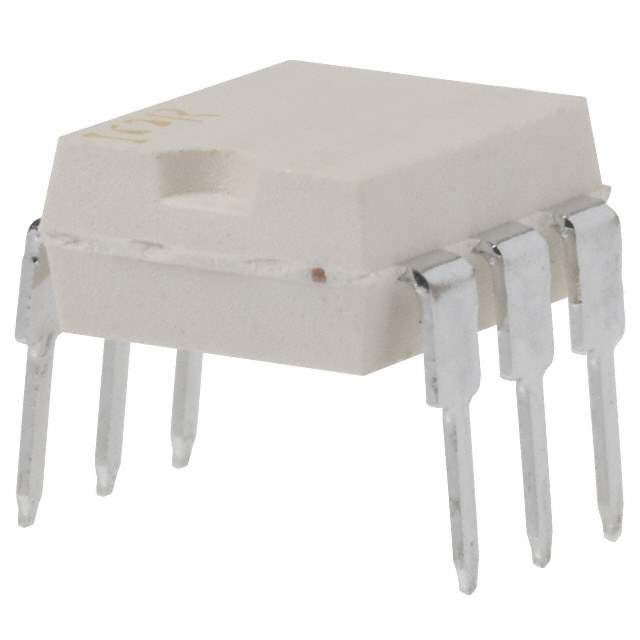

PVN012APBF Real Image
Same model may have multiple batches, images only for reference.

PVN012APBF

Part No PVN012APBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description IC RELAY PHOTOVO MOSF 20V 6-DIP / Solid State Relay 25mA DC-IN 4A 20V AC/DC-OUT 6-Pin PDIP Tube
Datasheet
PVN012APBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Series PVN, HEXFET
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 50 mOhm
Load Current 4A
Voltage - Input 1.2VDC
Voltage - Load 0 ~ 20 V
Mounting Style Through Hole
Termination Style PC Pin
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
Relay Type Relay
Win Source Part Number 792744-PVN012APBF
Popularity Medium
Supply and Demand Status Limited
Family Name PVN012APBF
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PVN012APBF CAD Model

Description

The Infineon Technologies PVN012APBF is a HEXFET PVN relay designed for use in high-voltage applications.

  • Circuit: SPST-NO (1 Form A)
  • Load Current: 4A
  • Voltage Input: 1.2VDC
  • Output Type: AC, DC
  • On-State Resistance (Maximum): 50 mOhm
  • Package: 6-DIP
  • Mounting Style: Through-hole
  • Estimated EOL Date: 2027
