Same model may have multiple batches, images only for reference.

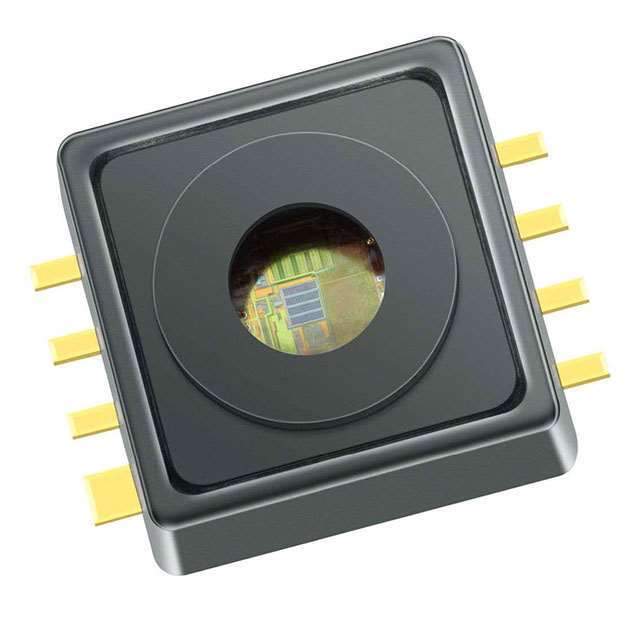

KP226E3408XTMA1 Real Image
Same model may have multiple batches, images only for reference.

KP226E3408XTMA1

Part No KP226E3408XTMA1
Manufacturer Infineon Technologies
Catalog Pressure Sensors, Transducers
Description XENSIV ANALOG TURBO MAP SENSOR / Pressure Sensor 2.18PSI ~ 58.02PSI (15kPa ~ 400kPa) Absolute 0.1 V ~ 4.85 V 8-SMD Module
Datasheet
KP226E3408XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Infineon Technologies
Package Tape & Reel
Applications Medical Ventilation
Pressure Type Absolute
Operating Pressure 2.18PSI ~ 58.02PSI (15kPa ~ 400kPa)
Output Type Analog Voltage
Output 0.1 V ~ 4.85 V
Accuracy ±0.81PSI (5.6kPa)
Voltage - Supply 4.5V ~ 5.5V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 140°C (TA)
Package / Case 8-SMD Module
Supplier Device Package PG-DSOF-8-16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 448-KP226E3408XTMA1TR,SP005578596,448-KP226E3408XTMA1DKR,448-KP226E3408XTMA1CT
Standard Package 1,500
Win Source Part Number 1067688-KP226E3408XTMA1
Ultra Librarian 3D Model Ultra Librarian KP226E3408XTMA1 CAD Model

Description

The Infineon Technologies 1067688-KP226E3408XTMA1 is a pressure sensor designed for medical ventilation applications.

  • Output: Amplified
  • Temperature Compensated: Yes
  • Output Type: Analog Voltage
  • Output Range: 0.1 V to 4.85 V
  • Accuracy: ±0.81PSI (5.6kPa)
  • Pressure Type: Absolute
  • Operating Pressure Range: 2.18PSI to 58.02PSI (15kPa to 400kPa)
  • Package: 8-SMD module
  • Voltage Supply: 4.5V to 5.5V
