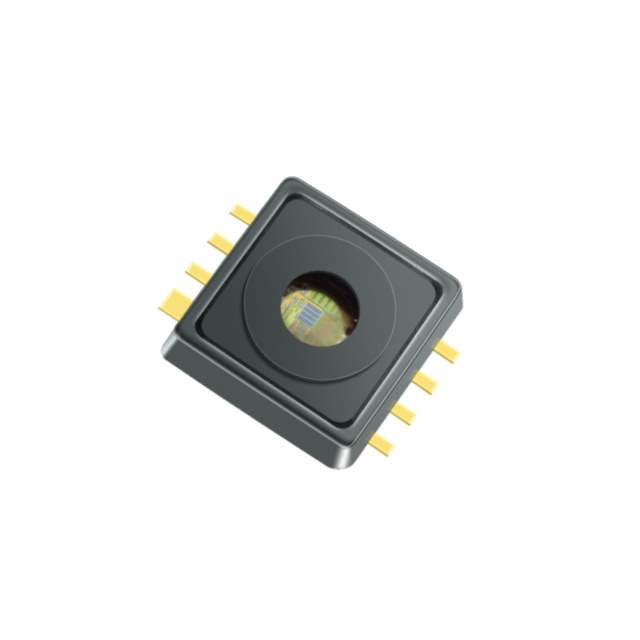

KP216K1409XTMA1 Real Image
Same model may have multiple batches, images only for reference.

KP216K1409XTMA1

Part No KP216K1409XTMA1
Manufacturer Infineon Technologies
Catalog Pressure Sensors, Transducers
Description IC ANLG ABSOLUTE PRES SNSR DSOF8 / Board Mount Pressure Sensor 0.1V to 4.85V 15kPa to 115kPa Absolute Automotive 8-Pin DSOF T/R
Datasheet
KP216K1409XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Pressure Type Absolute
Operating Pressure 2.18 PSI ~ 16.68 PSI (15 kPa ~ 115 kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.348 PSI (±2.4 kPa)
Operating Supply Voltage 4.5 V ~ 5.5 V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style Surface Mount
Operating Temperature Range -40°C ~ 140°C
Package 8-SMD Module
Win Source Part Number 778012-KP216K1409XTMA1
Popularity Medium
Supply and Demand Status Balance
Family Name KP216K1409
Introduction Date August 31, 2010
ECCN EAR99
Country of Origin Germany
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian KP216K1409XTMA1 CAD Model

Description

The Infineon Technologies KP216K1409XTMA1 is a pressure sensor that has an operating pressure range of 2.18 PSI to 16.68 PSI.

  • Operating Pressure Range: 2.18 PSI to 16.68 PSI
  • Accuracy: ±0.348 PSI (±2.4 kPa)
  • Output: Amplified
  • Compensation: Temperature compensated
  • Package: 8-SMD
  • Output Voltage Range: 0.5 V to 4.5 V
  • Popularity: Medium
  • Status: Limited supply and demand
