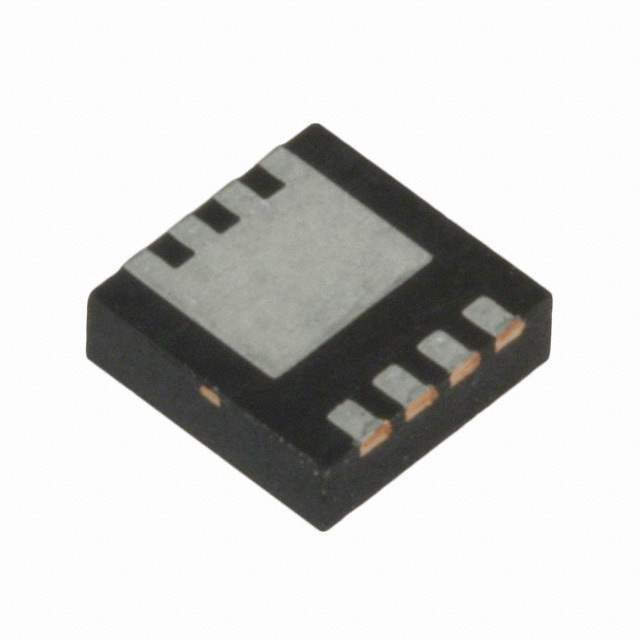

IRLHM630TRPBF Real Image IRLHM630TRPBF real image
Same model may have multiple batches, images only for reference.
IRLHM630TRPBF Real Image IRLHM630TRPBF real image
IRLHM630TRPBF Real Image IRLHM630TRPBF real image
Same model may have multiple batches, images only for reference.

IRLHM630TRPBF

Part No IRLHM630TRPBF
Manufacturer Infineon Technologies
Catalog FETs - Single
Description Battery Operated DC Motor Inverter MOSFET | MOSFET N-CH 30V 21A PQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 30V
Id - Continuous Drain Current 21A, 40A
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 10V
Rds On (Maximum) at Id, Vgs 3.5mOhm at 20A, 4.5V
Gate Source Voltage(th) (Maximum) at Id 1.1V at 50μA
Gate Charge (Qg) (Maximum) at Vgs 62nC at 4.5V
Gate Source Voltage (Maximum) ±12V
Input Capacitance (Ciss) (Maximum) at Vds 3170pF at 25V
Power Dissipation (Maximum) 2.7W, 37W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 8-VQFN Exposed Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1188535-IRLHM630TRPBF
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRLHM630TRPBF CAD Model

Description

The Infineon Technologies IRLHM630TRPBF is an N-channel MOSFET device that offers medium popularity in the market.

  • Supply and Demand Status: sufficient supply and demand status
  • Manufacturer: Infineon Technologies
  • Win Source Part Number: 1188535-IRLHM630TRPBF
  • Category: discrete semiconductor products
  • Suitability: suitable for various electronic applications that require high-performance and reliability
  • Maximum Power Dissipation: 37W
  • Input Capacitance: 3170pF @ 25V
  • Additional Information: an ideal choice for customers who are looking for a product that can provide excellent performance and quality @ an affordable price.
