Same model may have multiple batches, images only for reference.

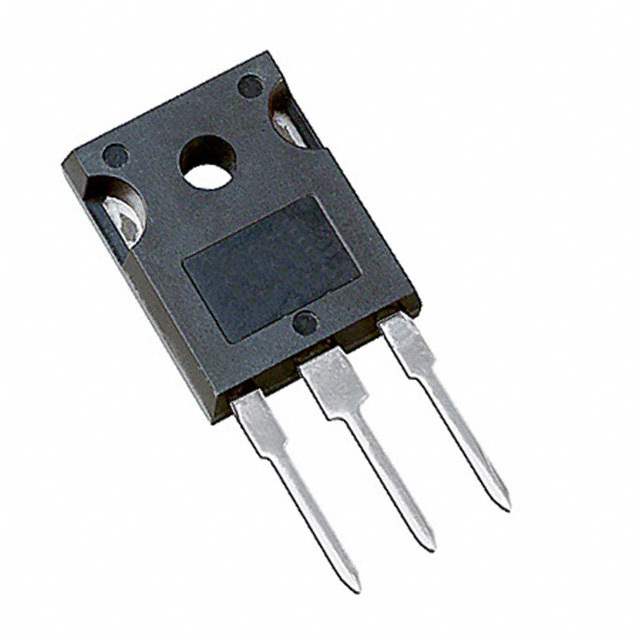

IRG4P254SPBF Real Image
Same model may have multiple batches, images only for reference.

IRG4P254SPBF

Part No IRG4P254SPBF
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT 250V 98A 200W TO247AC
Datasheet
IRG4P254SPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Bulk
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 250V
Maximum Current Collector 98A
Pulsed Collector Current 196A
Collector-emitter saturation voltage(Max) 1.5V @ 15V, 55A
Maximum Power Dissipation 200W
Total Switching Energy(Ets) 380μJ (on), 3.5mJ (off)
Input Type Standard
Gate Charge 200nC
Turn-on and Turn-off delay time 40ns/270ns
Testing Conditions 200V, 55A, 5 Ohm, 15V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-247AC
Win Source Part Number 069641-IRG4P254SPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRG4P254SPBF CAD Model

Description

The Infineon Technologies IRG4P254SPBF is an IGBT Type that comes in a TO-247AC package.

  • IGBT Type: IGBT
  • Package: TO-247AC
  • Maximum Current Collector: 98A
  • VCEO maximum collector-emitter breakdown voltage: 250V
  • Collector-emitter saturation voltage(Max): 1.5V @ 15V, 55A
  • Total Switching Energy(Ets): 380μJ (on), 3.5mJ (off)
  • Turn-on and turn-off delay time: 40ns/270ns
  • Testing Conditions: 200V, 55A, 5 Ohm, 15V
  • Maximum Power Dissipation: 200W
  • Temperature Range: -55°C to 150°C (TJ)
  • Availability: in the open market.
  • Supply and Demand Status: balanced.
