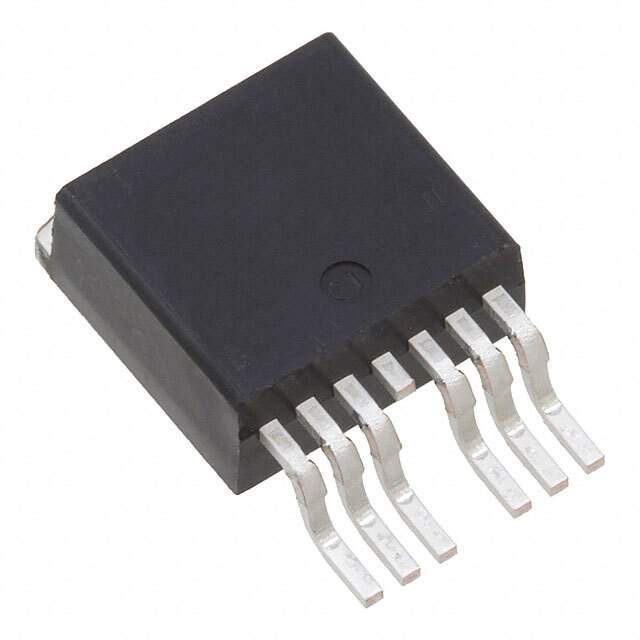

IRFS7434TRL7PP Infineon Technologies IRFS7434TRL7PP Real Image
Same model may have multiple batches, images only for reference.
IRFS7434TRL7PP Infineon Technologies IRFS7434TRL7PP Real Image
IRFS7434TRL7PP Infineon Technologies IRFS7434TRL7PP Real Image
Same model may have multiple batches, images only for reference.

IRFS7434TRL7PP

Part No IRFS7434TRL7PP
Manufacturer Infineon Technologies
Catalog FETs - Single
Description Trans MOSFET N-CH Si 40V 362A 7-Pin(6+Tab) D2PAK T/R / Brushed Motor drive applications | MOSFET N-CH 40V 240A D2PAK-7
Datasheet
IRFS7434TRL7PP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 40V
Id - Continuous Drain Current 240A
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Maximum) at Id, Vgs 1mOhm at 100A, 10V
Gate Source Voltage(th) (Maximum) at Id 3.9V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 315nC at 10V
Gate Source Voltage (Maximum) ±20V
Input Capacitance (Ciss) (Maximum) at Vds 10250pF at 25V
Power Dissipation (Maximum) 245W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Supplier Device Package D2PAK-7
Manufacturer Package TO-263-7, D2Pak (6 Leads + Tab)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 738807-IRFS7434TRL7PP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name IRFS7434
Introduction Date April 11, 2013
ECCN EAR99
Country of Origin China, Mexico
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian IRFS7434TRL7PP CAD Model

Description

The Infineon Technologies 738807-IRFS7434TRL7PP is a high popularity N-Channel MOSFET.

  • Drain-Source Breakdown Voltage: 40V
  • Continuous Drain Current: 240A
  • Gate Charge (Qg): 315nC @ 10V
  • Input Capacitance (Ciss): 10250pF @ 25V
  • Package: D2PAK-7, TO-263-7
  • Drive Voltage: 6V, 10V
  • Operating Temperature: -55°C to 150°C
  • Compliance: halogen-free
  • EOL Date: 2029 (estimated)
