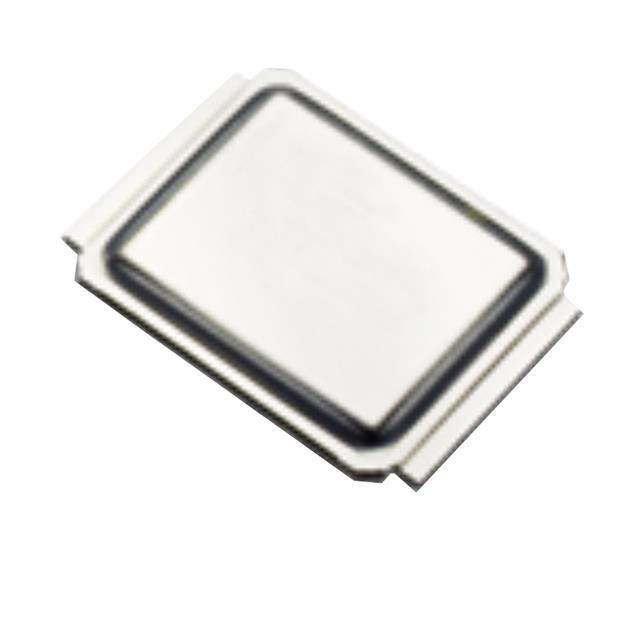

Same model may have multiple batches, images only for reference.

IRF6711STRPBF

Name: IRF6711STRPBF
Brand: Infineon Technologies
SKU: 604469
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRF6711STRPBF
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	DirectFETPower MOSFET \| MOSFET N-CH 25V 19A DIRECTFET-SQ
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tape and Reel
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	25V
Id - Continuous Drain Current	19A, 84A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Maximum) at Id, Vgs	3.8mOhm at 19A, 10V
Gate Source Voltage(th) (Maximum) at Id	2.35V at 25μA
Gate Charge (Qg) (Maximum) at Vgs	20nC at 4.5V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	1810pF at 13V
Power Dissipation (Maximum)	2.2W, 42W
Temperature Range - Operating	-40°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	DIRECTFET SQ
Manufacturer Package	DirectFET Isometric SQ
Manufacturer Pack Quantity	4,800
MSL Level	1 (Unlimited)
Win Source Part Number	1187157-IRF6711STRPBF
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRF6711STRPBF CAD Model

Description

The Infineon Technologies MOSFET is a high-performance N-channel transistor with a drain-source breakdown voltage of 25V and a continuous drain current of 19A.

Drain-Source Breakdown Voltage: 25V
Continuous Drain Current: 19A
Power Dissipation: Up to 2.2W and 42W
FET Feature: Not Specified
Gate-Source Voltage: ±20V
Transistor Polarity: N-channel
Supplier Device Package: DIRECTFET SQ
Technology: MOSFET
Mounting Style: SMD
Drive Voltage: 4.5V
Minimum Rds On: 10V
Temperature Range: -40°C to 150°C
Gate Charge (Qg) @ maximum Vgs: 20nC @ 4.5V
Input Capacitance (Ciss) @ maximum Vds: 1810pF @ 13V
Popularity: Medium
Supply and Demand: Balanced
Manufacturer Pack Quantity: 4,800
MSL Level: 1 (Unlimited)
