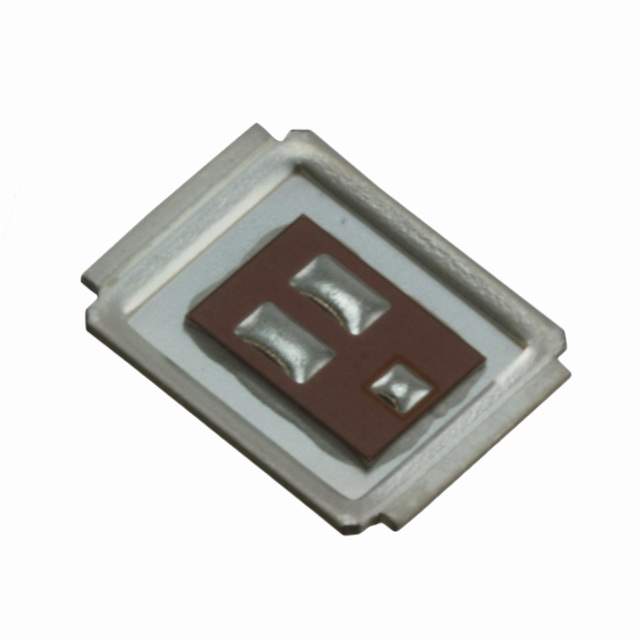

Same model may have multiple batches, images only for reference.

IRF6635

Name: IRF6635
Brand: Infineon Technologies
SKU: 604460
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRF6635
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	DirectFET Power MOSFET \| MOSFET N-CH 30V 32A DIRECTFET
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tape and Reel
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	30V
Id - Continuous Drain Current	32A, 180A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Maximum) at Id, Vgs	1.8mOhm at 32A, 10V
Gate Source Voltage(th) (Maximum) at Id	2.35V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	71nC at 4.5V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	5970pF at 15V
Power Dissipation (Maximum)	2.8W, 89W
Temperature Range - Operating	-40°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	DIRECTFET MX
Manufacturer Package	DirectFET Isometric MX
Manufacturer Pack Quantity	4,800
MSL Level	3 (168 Hours)
Win Source Part Number	1187148-IRF6635
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRF6635 CAD Model

Description

The Infineon Technologies 1187148-IRF6635 is an obsolete product falling under the category of discrete semiconductor products. The supply and demand status of this product is limited.

Supply and Demand: Limited
Technology: SMD MOSFET
Supplier Device Package: DirectFET MX
Vds - Drain-Source Breakdown Voltage (Max): 30V
Continuous Drain Current: 32A, 180A
Rds On (Maximum) @ Id, Vgs: 1.8mOhm @ 32A, 10V
Gate Charge (Qg) (Maximum) @ Vgs: 71nC @ 4.5V
Manufacturer: Infineon Technologies
