Same model may have multiple batches, images only for reference.

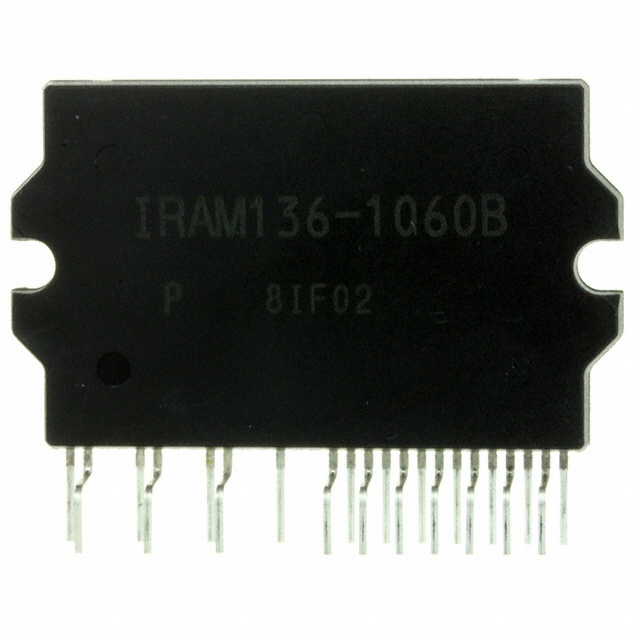

IRAM136-1060B Infineon Technologies
Same model may have multiple batches, images only for reference.

IRAM136-1060B

Part No IRAM136-1060B
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description IC HYBRID PWR 10A 600V ADV SIP05 / Power Driver Module IGBT 3 Phase 600 V 10 A 29-PowerSSIP Module, 21 Leads, Formed Leads
Datasheet
IRAM136-1060B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Power Driver Modules
Mfr Infineon Technologies
Series iMOTION™
Package Tube
Product Status Obsolete
Type IGBT
Configuration 3 Phase
Current 10 A
Voltage 600 V
Voltage - Isolation 2000Vrms
Mounting Type Through Hole
Package / Case 29-PowerSSIP Module, 21 Leads, Formed Leads
Standard Package 110 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 806735-IRAM136-1060B
Ultra Librarian 3D Model Ultra Librarian IRAM136-1060B CAD Model

Description

The Infineon Technologies 806735-IRAM136-1060B is a power driver module from the iMOTION™ series.

  • Series: iMOTION™
  • Application: 3-phase IGBT
  • Voltage Rating: 600 V
  • Current Rating: 10 A
  • High Voltage Isolation: 2000Vrms
  • Mounting: Through-hole
  • Module: 29-PowerSSIP
  • Leads: 21, Formed
