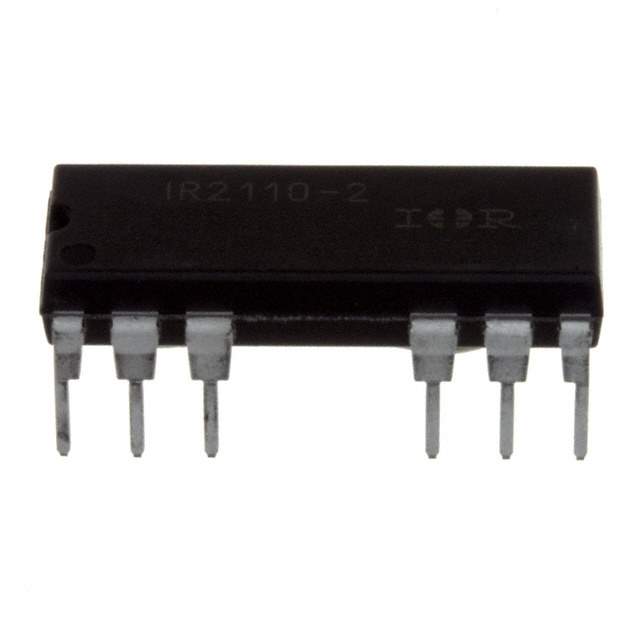

IR2110-2PBF Real Image
Same model may have multiple batches, images only for reference.

IR2110-2PBF

Part No IR2110-2PBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE 16DIP / Half-Bridge Gate Driver IC Non-Inverting 16-PDIP
Datasheet
IR2110-2PBF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr Infineon Technologies
Package Tube
Product Status Obsolete
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Voltage - Supply 3.3V ~ 20V
Logic Voltage - VIL, VIH 6V, 9.5V
Current - Peak Output (Source, Sink) 2A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 500 V
Rise / Fall Time (Typ) 25ns, 17ns
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm), 14 Leads
Supplier Device Package 16-PDIP
Base Product Number IR2110-2PBF
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001539978,*IR2110-2PBF
Standard Package 25
Win Source Part Number 962477-IR2110-2PBF
Ultra Librarian 3D Model Ultra Librarian IR2110-2PBF CAD Model

Description

The IR2110-2PBF is an independent, half-bridge gate driver IC designed for use with IGBT and N-Channel MOSFET gate drivers.

  • Logic Voltage Range: 6V to 9.5V
  • Maximum High Side Voltage: 500V
  • Rise and Fall Times: 25ns and 17ns, respectively
  • Peak Output Current: 2A for both source and sink
  • Package: 16-DIP (0.300", 7.62mm), 14 lead configuration
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 150°C (TJ)
  • Alternative Parts: UC2708NE, IR2113-1PBF, IR2112-1PBF, MIC4468ZN, HIP4081AIP, MIC4469ZN, and ISL83202IPZ
