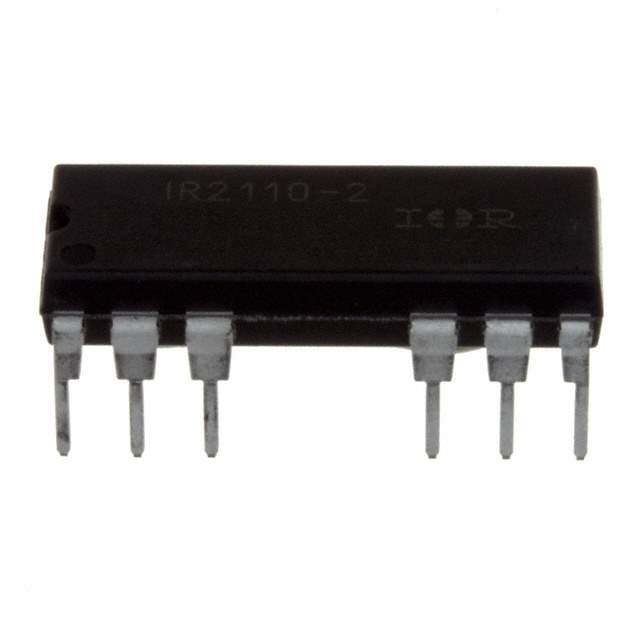

IR2110-2 Real Image
Same model may have multiple batches, images only for reference.

IR2110-2

Part No IR2110-2
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DRIVER HIGH/LOW SIDE 14-DIP / Driver 500V 2.5A 2-OUT High and Low Side Non-Inv 12-Pin PDIP
Datasheet
IR2110-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Packaging Tube
Part Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Operating Supply Voltage 3.3 V ~ 20 V
Logic Voltage - VIL, VIH 6V, 9.5V
Current - Peak Output (Source, Sink) 2A, 2A
High Side Voltage - Max (Bootstrap) 500V
Rise / Fall Time (Typ) 25ns, 17ns
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 14-DIP (0.300", 7.62mm), 12 Leads
Manufacturer Package 14-PDIP
Win Source Part Number 776948-IR2110-2
Popularity Medium
Supply and Demand Status Limited
Family Name IR2110-2
Introduction Date March 24, 2005
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IR2110-2 CAD Model

Description

The Infineon Technologies IR2110-2 is a 14-DIP (0.300", 7.62mm), 12 Leads package, independent channel type, half-bridge driven configuration IC.

  • Gate Driver Types: IGBT, N-channel MOSFET
  • Peak Output Current: 2A
  • High-Side Voltage: 500V
  • Rise/Fall Time: 25ns/17ns
  • Logic Voltage (VIL, VIH): 6V, 9.5V
  • Status: Obsolete (EOL)
  • Alternative Parts: 5962-9165301MGA, SG1644T/DESC, 5962-9165301M2A, SG1644T
