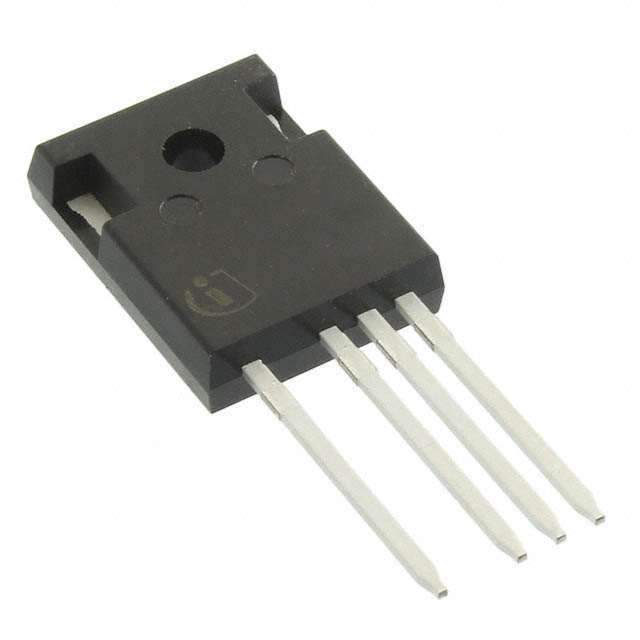

IPZ60R070P6FKSA1

Name: IPZ60R070P6FKSA1
Brand: Infineon Technologies
SKU: 1065395
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPZ60R070P6FKSA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 600V 53.5A TO247-4 / N-Channel 600 V 53.5A (Tc) 391W (Tc) Through Hole PG-TO247-4
Datasheet	IPZ60R070P6FKSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	CoolMOS™ P6
Package	Tube
Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	53.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	70mOhm @ 20.6A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1.72mA
Gate Charge (Qg) (Max) @ Vgs	100 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4750 pF @ 100 V
Power Dissipation (Max)	391W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO247-4
Package / Case	TO-247-4
Base Product Number	IPZ60R070
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	ROCINFIPZ60R070P6FKSA1,SP001313880,2156-IPZ60R070P6FKSA1
Standard Package	240
Win Source Part Number	1065395-IPZ60R070P6FKSA1
Ultra Librarian 3D Model	Ultra Librarian IPZ60R070P6FKSA1 CAD Model

Alternative Products

Description

The Infineon Technologies CoolMOS P6 series is a set of N-Channel MOSFETs designed for use in various electronic devices.

Drain to Source Voltage (Vdss): 600 V
Continuous Drain Current (Id): 53.5A (Tc)
Rds On (Max) @ Id, Vgs: 70mOhm @ 20.6A, 10V
Gate Charge (Qg) (Max) @ Vgs: 100 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 4750 pF @ 100 V
Temperature Range: -55°C ~ 150°C (TJ)
Packaging: Through-hole
