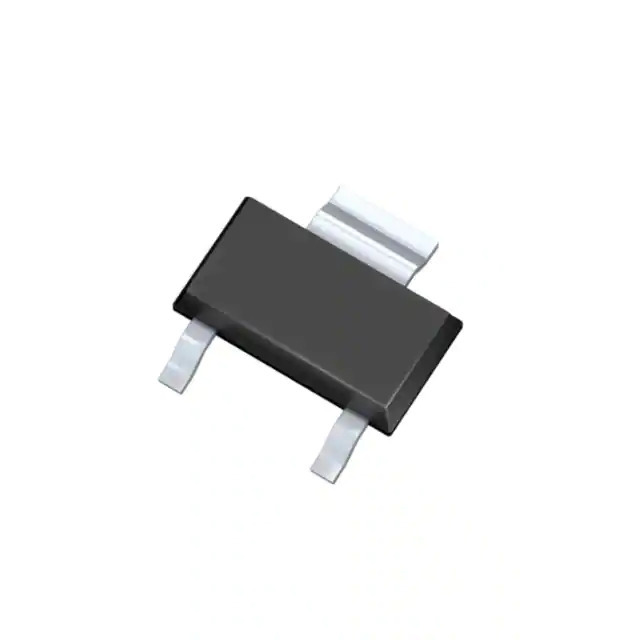

Same model may have multiple batches, images only for reference.

IKN03N60RC2ATMA1

Name: IKN03N60RC2ATMA1
Brand: Infineon Technologies
SKU: 1376603
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IKN03N60RC2ATMA1
Manufacturer	Infineon Technologies
Catalog	IGBTs - Single
Description	HOME APPLIANCES 14 PG-SOT223-3
Datasheet	IKN03N60RC2ATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	Infineon Technologies
Series	-
Package	Tape & Reel
Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	5.7 A
Current - Collector Pulsed (Icm)	9 A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 3A
Power - Max	6.3 W
Switching Energy	62µJ (on), 44µJ (off)
Input Type	Standard
Gate Charge	18 nC
Td (on/off) @ 25°C	7ns/77.5ns
Test Condition	400V, 3A, 49Ohm, 15V
Reverse Recovery Time (trr)	38 ns
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-3
Supplier Device Package	PG-SOT223-3-1
Base Product Number	IKN03N
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1376603-IKN03N60RC2ATMA1
Ultra Librarian 3D Model	Ultra Librarian IKN03N60RC2ATMA1 CAD Model

Alternative Products

Description

The IKN03N60RC2ATMA1 is a single IGBT transistor from Infineon Technologies.

Category: Discrete Semiconductor Products
Temperature Range: -40°C to 150°C (TJ)
Collector Current (Ic): 5.7 A
Collector-Emitter Voltage (Vce): 600 V
Power Rating: 6.3 W
Package Type: Surface Mount (TO-261-3)
Input Type: Standard
Gate Charge: 18 nC
Switching Energy (Turn On): 62μJ (on)
Switching Energy (Turn Off): 44μJ (off)
