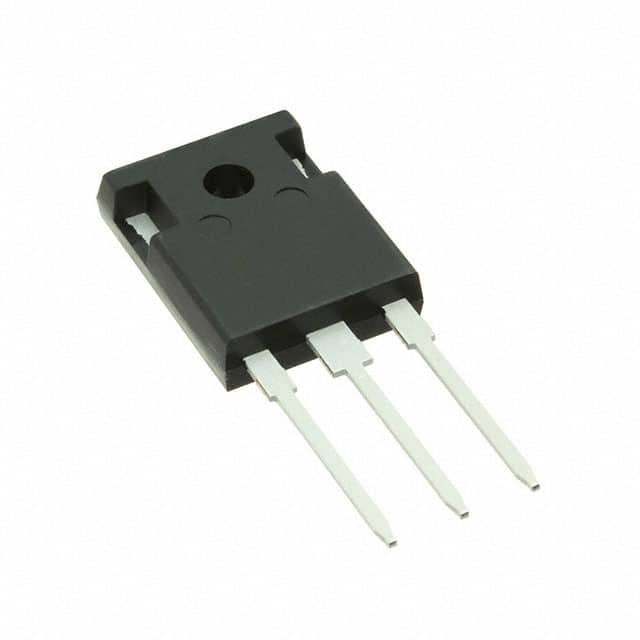

The Infineon Technologies TrenchStop™ IGBT is a high-quality electronic component that is designed to handle a maximum power of 394W and a voltage collector emitter breakdown of up to 1200V.

• Power (Max): 394W
• Voltage - Collector Emitter Breakdown (Max): 1200V
• Current - Collector (Ic) (Max): 80A
• Current - Collector Pulsed (Icm): 120A
• Switching Energy: 1.6mJ (off)
• Gate Charge: 310nC
• Mounting Type: Through Hole
• Package: TO-247-3
• Temperature Range: -40°C to 175°C (TJ)
• Alternative Part: IHW40N120R5XKSA1
• REACH: Unaffected
