Same model may have multiple batches, images only for reference.

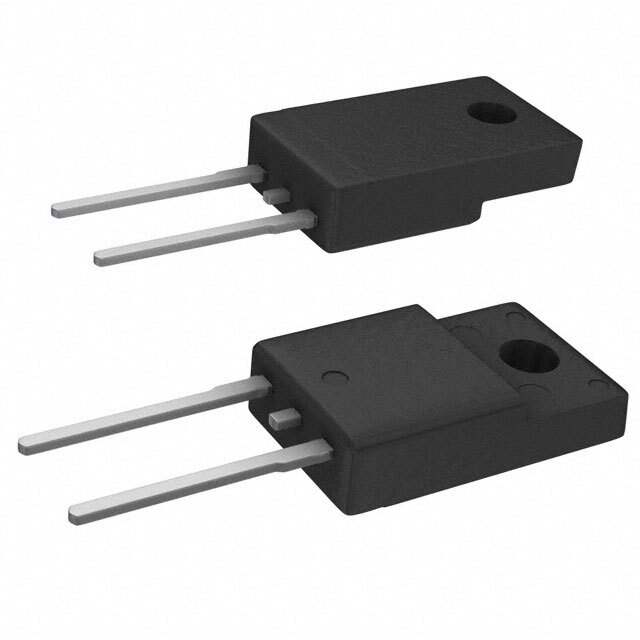

IDV30E60C Real Image
Same model may have multiple batches, images only for reference.

IDV30E60C

Part No IDV30E60C
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 21A TO22FP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 21A
Voltage - Forward (Vf) (Max) @ If 2.05V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 130ns
Current - Reverse Leakage @ Vr 40μA @ 600V
Mounting Through Hole
Case / Package PG-TO220-2 Full Pack
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 068741-IDV30E60C
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian IDV30E60C CAD Model

Description

The Infineon Technologies IDV30E60C is a standard diode type that comes in PG-TO220-2 Full Pack packaging.

  • Maximum Reverse Voltage: 600V
  • Average Rectified Current: 21A
  • Forward Voltage: 2.05V @ 30A
  • Reverse Recovery Time: 130ns
  • Leakage Current: 40μA @ 600V
  • Operating Temperature Range: -55°C to 175°C
  • Supply and Demand Status: sufficient with 500 quantity per package.
