Same model may have multiple batches, images only for reference.

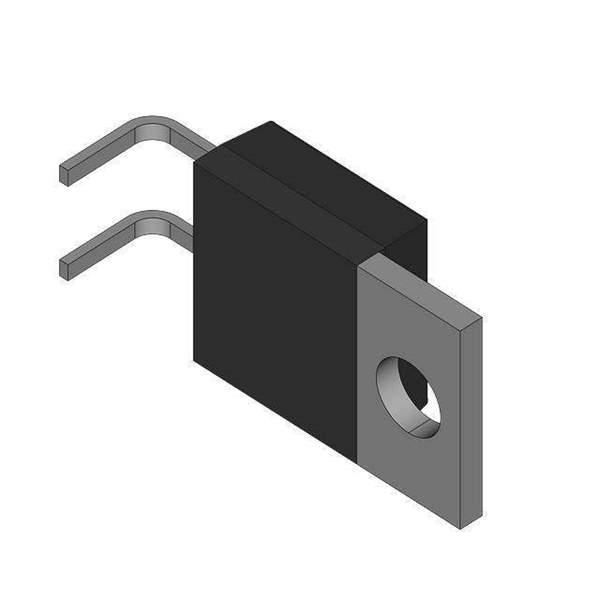

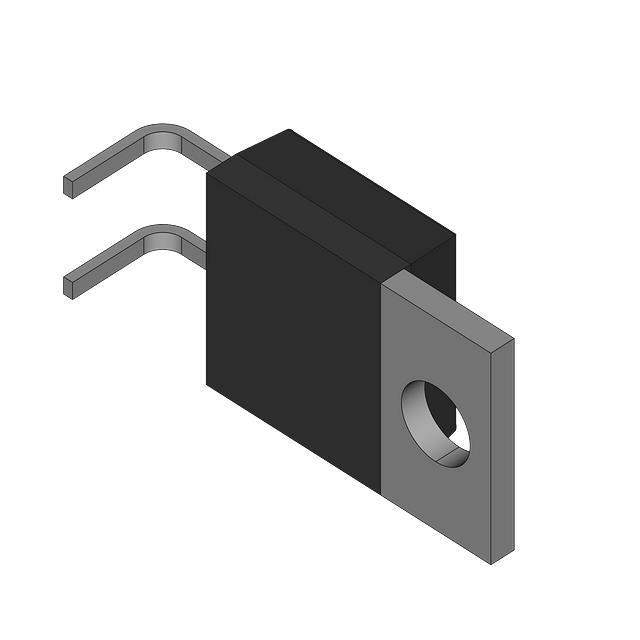

HFA15TB60PBF Real Image
Same model may have multiple batches, images only for reference.

HFA15TB60PBF

Part No HFA15TB60PBF
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description HEXFRED | DIODE GEN PURP 600V 15A TO220AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Maximum) at If 1.7V at 15A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 60ns
Current - Reverse Leakage at Vr 10μA at 600V
Mounting Style Through Hole
Manufacturer Package TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction -55°C ~ 150°C
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1180125-HFA15TB60PBF
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Motor Drive & Control
Ultra Librarian 3D Model Ultra Librarian HFA15TB60PBF CAD Model

Description

The HFA15TB60PBF is a fast recovery diode that is ideal for use in power management, motor drive, and control applications.

  • GPTDescription: The device has a maximum reverse voltage (Vr) of 600V and a current - average rectified (Io) of 15A.
  • GPTDescription: The device has a reverse recovery time (trr) of 60ns and can operate in a temperature range of -55°C ~ 150°C.
  • GPTDescription: The device comes in a TO-220AC package, and its voltage - forward (Vf) (Maximum) @ If is 1.7V @ 15A.
  • GPTDescription: The device has a current - reverse leakage @ Vr of 10μA @ 600V.
  • GPTDescription: The device is a reliable and efficient component that can be used in various applications.
