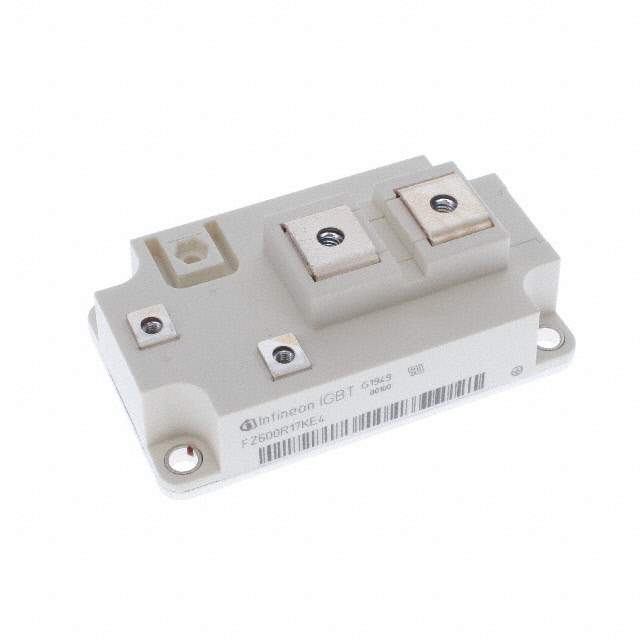

FZ600R17KE4HOSA1 Real Image
Same model may have multiple batches, images only for reference.

FZ600R17KE4HOSA1

Part No FZ600R17KE4HOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1700V 1200A 3350W / IGBT Module Trench Field Stop Single 1700 V 1200 A 3350 W Chassis Mount Module
Datasheet
FZ600R17KE4HOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series C
Package Tray
IGBT Type Trench Field Stop
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 1700 V
Current - Collector (Ic) (Max) 1200 A
Power - Max 3350 W
Vce(on) (Max) @ Vge, Ic 2.3V @ 15V, 600A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 49 nF @ 25 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FZ600R17
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP000713626,FZ600R17KE4
Standard Package 10
Win Source Part Number 1013921-FZ600R17KE4HOSA1
Ultra Librarian 3D Model Ultra Librarian FZ600R17KE4HOSA1 CAD Model

Description

The Infineon Technologies 1013921-FZ600R17KE4HOSA1 is a single configuration IGBT module with a maximum power rating of 3350 W.

  • IGBT Type: Trench field stop
  • Maximum Collector-Emitter Breakdown Voltage: 1700 V
  • Maximum Collector Current: 1200 A
  • Input: Standard
  • Mounting: Chassis
  • Package Type: Module
  • Device Package: Module
  • Operating Temperature Range: -40°C to 150°C
  • Input Capacitance: 49 nF @ 25 V
