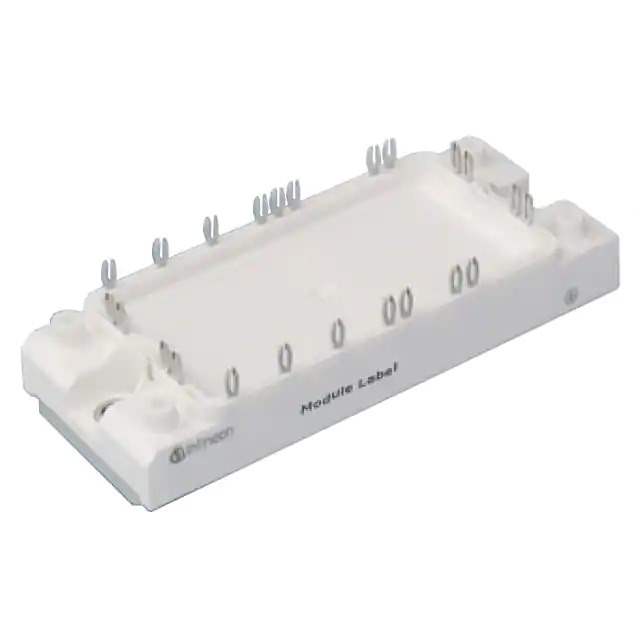

FS50R12KE3BOSA1 Real Image
Same model may have multiple batches, images only for reference.

FS50R12KE3BOSA1

Part No FS50R12KE3BOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 75A 270W / IGBT Module NPT Three Phase Inverter 1200 V 75 A 270 W Chassis Mount Module
Datasheet
FS50R12KE3BOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Infineon Technologies
Package Bulk
Product Status Discontinued
IGBT Type NPT
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 75 A
Power - Max 270 W
Vce(on) (Max) @ Vge, Ic 2.15V @ 15V, 50A
Current - Collector Cutoff (Max) 5 mA
Input Capacitance (Cies) @ Vce 3.5 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FS50R12
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 846846-FS50R12KE3BOSA1
Ultra Librarian 3D Model Ultra Librarian FS50R12KE3BOSA1 CAD Model

Description

The 846846-FS50R12KE3BOSA1 is an IGBT module designed for three-phase inverter configurations.

  • Maximum Power Rating: 270W
  • Voltage Breakdown: 1200V
  • Maximum Collector Current: 75A
  • On-State Voltage Drop: 2.15V @ a gate-emitter voltage of 15V and a collector current of 50A
  • Maximum Collector Cutoff Current: 5mA
  • Input Capacitance: 3.5nF @ a collector-emitter voltage of 25V
  • Mounting: chassis mounting
  • Operating Temperature Range: 150°C
