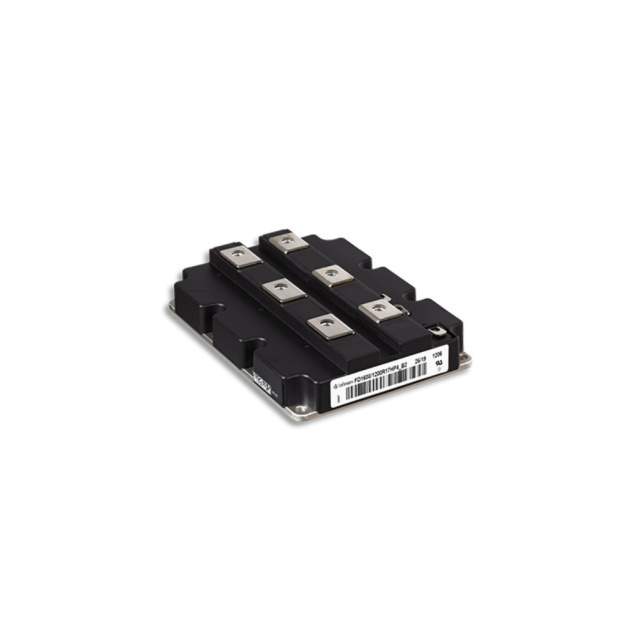

FD1000R33HE3KBPSA1 Real Image
Same model may have multiple batches, images only for reference.

FD1000R33HE3KBPSA1

Part No FD1000R33HE3KBPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MODULE 3300V 1000A / IGBT Module Trench Field Stop Dual Brake Chopper 3300 V 1000 A 11500 W Chassis Mount Module
Datasheet
FD1000R33HE3KBPSA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series IHM-B
Package Bulk
IGBT Type Trench Field Stop
Configuration Dual Brake Chopper
Voltage - Collector Emitter Breakdown (Max) 3300 V
Current - Collector (Ic) (Max) 1000 A
Power - Max 11500 W
Vce(on) (Max) @ Vge, Ic 3.1V @ 15V, 1000A
Current - Collector Cutoff (Max) 5 mA
Input Capacitance (Cies) @ Vce 190 nF @ 25 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FD1000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names FD1000R33HE3-K,FD1000R33HE3-K-ND,SP001181570
Standard Package 1
Win Source Part Number 1210267-FD1000R33HE3KBPSA1
Ultra Librarian 3D Model Ultra Librarian FD1000R33HE3KBPSA1 CAD Model

Description

The FD1000R33HE3KBPSA1 is a dual brake chopper IGBT module from Infineon Technologies.

  • IGBT Type: Trench Field Stop
  • Collector-Emitter Breakdown Voltage: 3300V
  • Maximum Collector Current: 1000A
  • Maximum Collector-Emitter Voltage @ Vge, Ic: 3.1V @ 15V and 1000A
  • Input Capacitance @ 25V: 190nF
  • Maximum Collector Cutoff Current: 5mA
  • Mounting: Chassis
  • Operating Temperature Range: -40°C to 150°C
