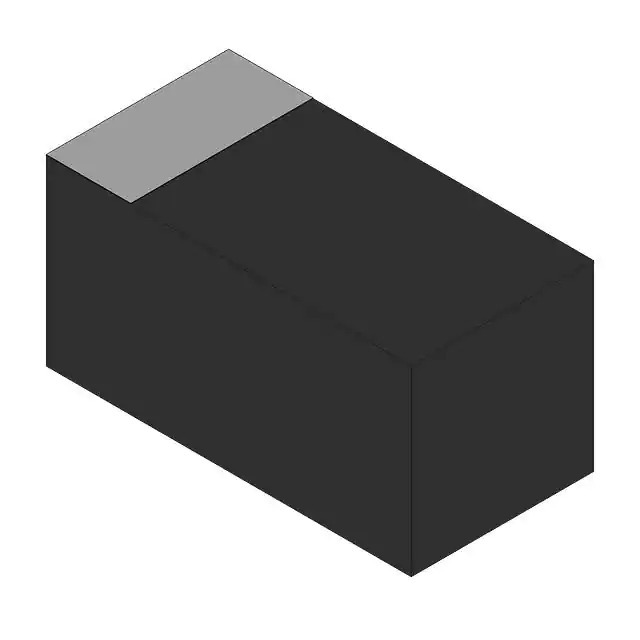

Same model may have multiple batches, images only for reference.

ESD113-B1-02ELSE6327

Name: ESD113-B1-02ELSE6327
Brand: Infineon Technologies
SKU: 1378386
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ESD113-B1-02ELSE6327
Manufacturer	Infineon Technologies
Catalog	TVS - Diodes
Description	TRANS VOLTAGE SUPPRESSOR DIODE
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Infineon Technologies
Series	-
Package	Bulk
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	3.6V (Max)
Voltage - Breakdown (Min)	4V
Voltage - Clamping (Max) @ Ipp	8V (Typ)
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power - Peak Pulse	36W
Power Line Protection	No
Applications	DVI, HDMI, USB
Capacitance @ Frequency	0.2pF @ 1GHz
Temperature Range - Operating	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-TSSLP-2-4
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1378386-ESD113-B1-02ELSE6327
Ultra Librarian 3D Model	Ultra Librarian ESD113-B1-02ELSE6327 CAD Model

Description

The ESD113-B1-02ELSE6327 is a TVS diode from Infineon Technologies.

Type: Zener
Temperature Range: -55°C to 125°C
Voltage Reverse Standoff: 3.6V
Channels: Bidirectional
Breakdown Voltage: 4V
Clamping Voltage: 8V @ Peak Pulse Current (Ipp)
Mounting Type: Surface Mount
Package / Case: 0201 (0603 Metric)
Applications: DVI, HDMI, USB
