The ESD105-B1-02ELS E6327 is a bidirectional Electrostatic Discharge (ESD) protection device manufactured by Infineon Technologies. It is designed to protect sensitive electronic components from damage due to ESD events. This device offers a low clamping voltage and fast response time, making it suitable for a wide range of applications where ESD protection is critical.

Applications:

• Protection of high-speed data lines
• USB interfaces
• HDMI ports
• Antenna protection in wireless devices
• General I/O protection in electronic equipment

Features:

• Bidirectional ESD protection
• Low clamping voltage
• Fast response time
• Low capacitance
• IEC 61000-4-2 compliance
• Small package size

Benefits:

• Protects sensitive components from ESD damage, increasing system reliability
• Maintains signal integrity due to low capacitance
• Reduces system downtime and repair costs
• Easy to implement due to small package size
• Complies with industry standard ESD protection requirements

Additional Details:

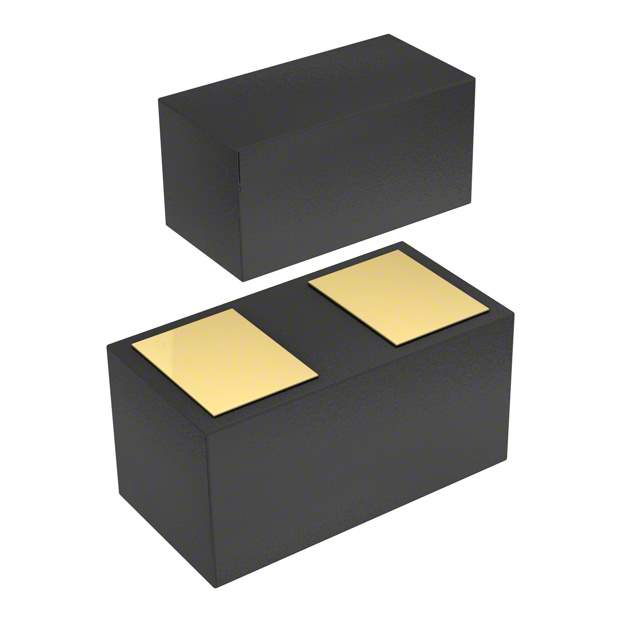

The ESD105-B1-02ELS E6327 typically features a breakdown voltage around 6V. Its dynamic resistance is very low, ensuring efficient clamping during ESD events. The device is designed to handle multiple ESD strikes without degradation, providing robust and long-lasting protection. It is available in a space-saving package, making it ideal for densely populated circuit boards.

This TVS diode is crucial in protecting various electronic interfaces from harmful electrostatic discharges, thereby ensuring the longevity and stable operation of the equipment it safeguards. Its low capacitance makes it particularly well-suited for high-speed data lines where signal integrity is paramount.
