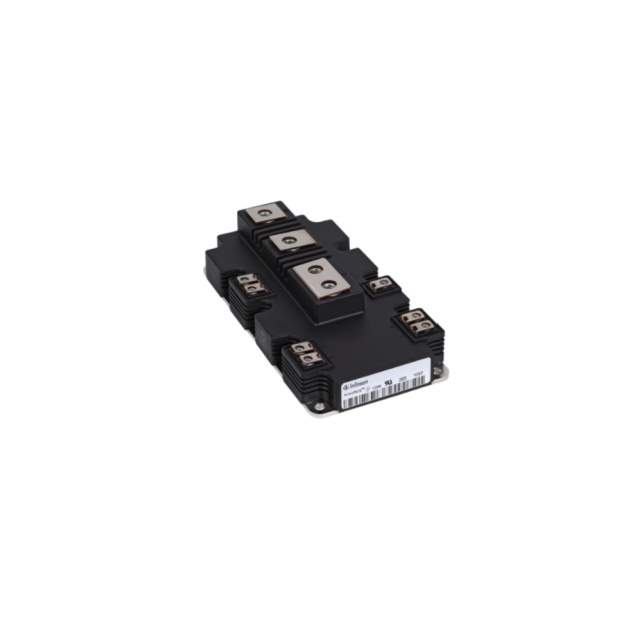

DF600R12IP4DBOSA1 Real Image
Same model may have multiple batches, images only for reference.

DF600R12IP4DBOSA1

Part No DF600R12IP4DBOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 600A 3350W  /  IGBT Module Trench Field Stop Single 1200 V 600 A 3350 W Chassis Mount Module
Datasheet
DF600R12IP4DBOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series PrimePACK™2
Package Tray
IGBT Type Trench Field Stop
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 600 A
Power - Max 3350 W
Vce(on) (Max) @ Vge, Ic 2.05V @ 15V, 600A
Current - Collector Cutoff (Max) 5 mA
Input Capacitance (Cies) @ Vce 37 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number DF600R12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names DF600R12IP4D,SP000721118,INFINFDF600R12IP4DBOSA1,2156-DF600R12IP4DBOSA1
Standard Package 3
Win Source Part Number 1032894-DF600R12IP4DBOSA1
Ultra Librarian 3D Model Ultra Librarian DF600R12IP4DBOSA1 CAD Model

Description

The DF600R12IP4DBOSA1 electronic component is a single configuration IGBT transistor in the PrimePACK 2 series.

  • Voltage: 1200V (maximum)
  • Current: 600A
  • Package: Module
  • Mounting: Chassis
  • Power: 3350W (maximum)
  • Voltage: 2.05V @ 15V, 600A
